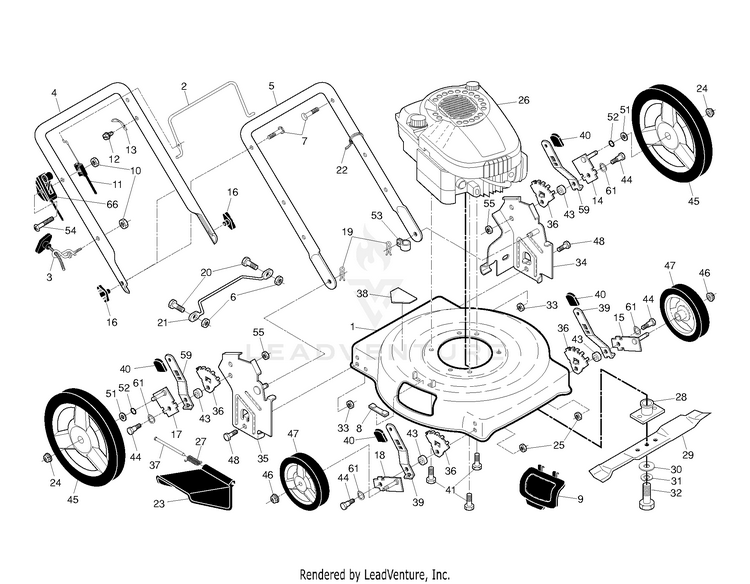

Husqvarna J55 L - 96111002702 (2009-10) Walk Behind Mower

Model: J55 L - 96111002702 (2009-10)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
19
HAIRPIN COTTER HUS-532051793
...
38
DECAL.CUTFINGER.CE.02 HUS-581579101
...
48
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
26
B&S 122T02-1158-B1 HUS-000000000
...
23
GUARD.DISCHARGE.22". HUS-532160831
...
35
BRACKET.ASM.HANDLE.HW.RT.ORANG HUS-532419159
...
51
O-RING..070X.487.NEOPRENE HUS-532197480
...
55
NUT.LOCK.5/16-18 HUS-532751153
...
27
SPRING.HINGE HUS-532408585
...
46
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
53
CLIP.CABLE.BLK HUS-532197991
...
6
LOCKNUT HUS-532069180
...
47
WHEEL.8.1.75,H3SPK.RAD3.GY.TB1 HUS-532401272
...
59
SPRING.SEL.EXT.21.DOMED.12/14 HUS-532401624
...
12
SCREW HUS-532750634
...
13
BRACKET.UPSTOP HUS-532850733
...
21
FOOTGUARD.WIREFORM.CE HUS-532431995
...
31
Washers HUS-596238701
...
17
ARM.ASM.AXLE..RR.5/9.POS.BZP HUS-532401177
...
3
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
36
BRACKET.ADJ.5POS.ADS HUS-532407494
...
7
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
11
Engine Zone Control Cable HUS-532182837
...
32
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
66
Control Throttle HUS-532420611
...
45
WHEEL.12X1.75.CF H3SPK.RAD3.TB HUS-585911002
...
10
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
39
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
34
BRACKET.ASM.HANDLE.HW. HUS-532419160
...
5
HANDLE.LOWER.BLACK HUS-532174291
...
54
SCREW HUS-532183365
...
30
WASHER,HARDEN HUS-532851074
...
14
ARM.ASM.AXLE..LR.5/9.POS.BZP HUS-532401176
...
22
WIRE TIE HUS-532007192
...
16
HANDLE.KNOB.BLACK HUS-532185577
...
33
NUT.CENTERLOCK.5/16- HUS-873930500
...
25
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
61
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
40
KNOB HUS-532087877
...
4
Upper Handle HUS-532403129
...
18
ARM.ASM.AXLE.5/9.POS.BZP HUS-532401175
...
44
Hardware HUS-596203801
...
2
BAIL.MZR.STD.BLACK HUS-532194177
...
8
CLIP. CLOSEOUT HUS-532161622
...
52
WASHER.FLAT.1/2 HUS-532088348
...
20
SCREW HUS-871191012
...
29
Blade, 22" HUS-532199379
...
9
PLATE.MULCHER.22.ECON.BLACK HUS-532160830
...
1
Lawn Mower Housing Includes Key Number 38 HUS-532419069
...
28
ADAPTER.BLADE.W/KEY.25MM.CE HUS-532418373
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
43
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
15
ARM.ASM.AXLE.5/9.POS. HUS-532401174
...
xx
DECAL.INTERN.4.SYMBOL.CURVED not shown HUS-532182191
...
37
HINGE ROD HUS-532160833
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
