Husqvarna J5000DR (1999 & Before) Tiller

Model: J5000DR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

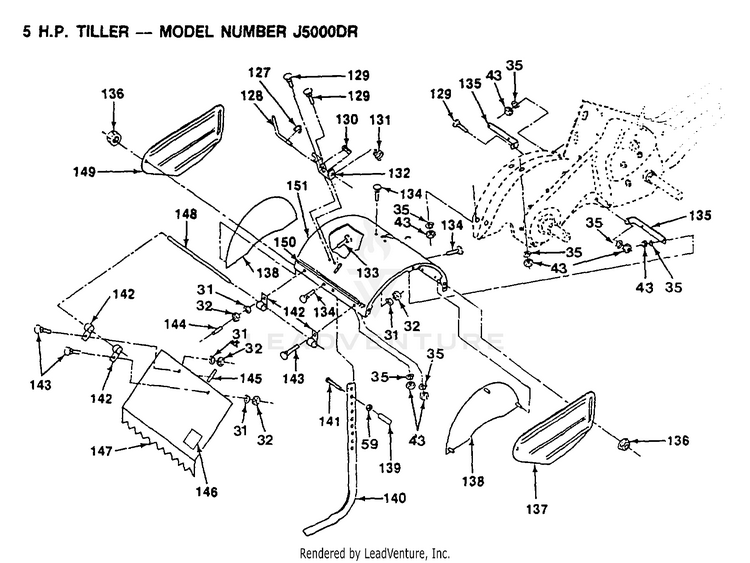

TINE SHIELD

...
...
127
STAKE PIN TI HUS-8393J
...
128
KLIP RING TI HUS-12000036
...
129
BOLT CRT HUS-72110508
...
130
SPRING TI HUS-8394J
...
131
SPRING CRT HUS-109230X
...
132
LATCH BRACKET TI HUS-8392J
...
133
BOLT HUS-72040410
...
134
BOLT HUS-72140505
...
135
SUB= 124343X HUS-102155X
...
136
NUT HUS-98000129
...
137
SUB= 104101X417 HUS-104101X
...
138
SUB= 104085X417 HUS-104085X
...
139
GRIP CRT HUS-102701X
...
140
SUB= 102156X500 HUS-102156X
...
141
BOLT HUS-74930632
...
142
HINGE CRT HUS-4440J
...
143
BOLT HUS-72140404
...
144
VINYL CAP TI HUS-6712 J
...
145
PAD IDLER TI HUS-109227X
...
146
SUB= 120075X HUS-120076X
...
147
SUB= 102695X417 HUS-102695X
...
148
PIN HINGE HUS-120588X
...
149
SUB= 104086X417 HUS-104086X
...
150
DECAL, TINE SHIELD HUS-108283X
...
151
SUB= 102326X417 HUS-102326X
