Husqvarna J5000DR (1999 & Before) Tiller

Model: J5000DR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

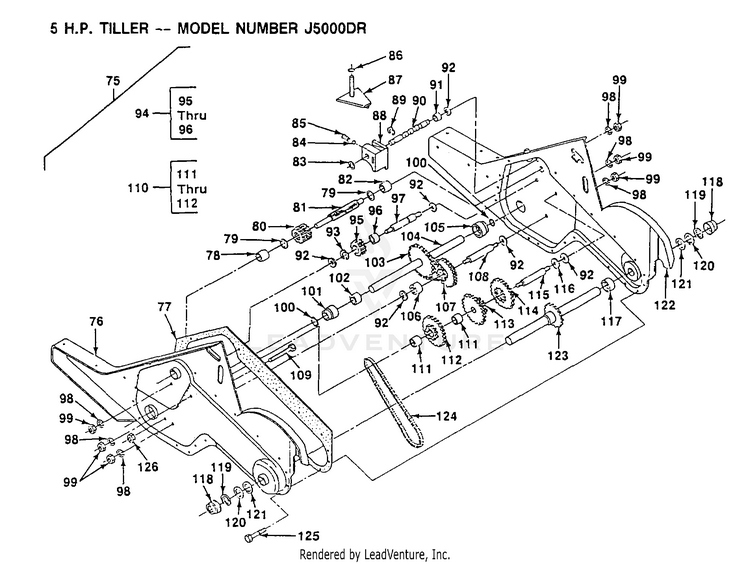

TRANSMISSION P/N BREAKOUT

...
...
75
SUB= 155112 HUS-121146X
...
76
SUB= 150698 HUS-121147X
...
77
GASKET TI HUS-106211X
...
78
NEEDLE BRNG LT HUS-5020J
...
79
"T, BEARING" HUS-1370H
...
80
PINION-INPUT CRT HUS-102113X
...
81
SHAFT-INPUT CRT HUS-102110X
...
82
"TI, BEARING" HUS-4895H
...
83
WASHER SEAL CRT HUS-102136X
...
84
SUB= 100482K HUS-7392M
...
85
SPRING-SHIFT CRT HUS-100371K
...
86
O-RING TI HUS-106160X
...
87
ARM ASSY CRT HUS-102107X
...
88
SHIFT FORK TI HUS-8353J
...
89
KLIP RING HUS-12000039
...
90
SHAFT SHIFT CRT HUS-102109X
...
91
SPACER SPLIT CRT HUS-104159X
...
92
WASHER HUS-4358J
...
93
KLIP RING HUS-12000040
...
94
GEAR ASSY CRT HUS-102114X
...
95
GEAR-REV IDLR CRT HUS-102115X
...
96
NEEDLE BEARING TI HUS-6803J
...
97
SHAFT CRT HUS-102111X
...
98
LOCKWASHER HUS-10040700
...
99
NUT.ASF.HEX.7/16 HUS-73610700
...
100
O RING CRT HUS-102128X
...
101
"CRT, BEARING" HUS-102100X
...
102
BUSHING TI HUS-106390X
...
103
CHAIN CRT HUS-102134X
...
104
SUB= 150737 HUS-109204X
...
105
SUB= 918102106X HUS-102106X
...
106
SPACER TI HUS-106388X
...
107
SPRCKT 8 GEAR CRT HUS-102121X
...
108
SHFT 2ND RED. CRT HUS-102112X
...
109
SCRW WHIZ LOK CRT HUS-102101X
...
110
SUB= 137300 HUS-106141X
...
111
BEARING HUS-4422J
...
112
SUB= 137300 HUS-106142X
...
113
GEAR TI HUS-105345X
...
114
GEAR TI HUS-105346X
...
115
REDUCTION SHFT TI HUS-8358J
...
116
BRNG RACE HUS-4220R
...
117
SPACER TI HUS-106146X
...
118
SUB= 123899X HUS-9272R
...
119
RING SPIRAL CRT HUS-102144X
...
120
SUB= 147344 HUS-9676R
...
121
SUB= 147344 HUS-9674R
...
122
SUB= 150700 HUS-121745X
...
123
SHAFT ASSY TI HUS-106144X
...
124
CHAIN.50 LINK TI HUS-106147X
...
125
SCREW CRT HUS-17580408
...
126
NUT.HEX.5/16-18 HUS-73220500
