Husqvarna J50 - 96111001307 (2010-12) Walk Behind Mower

Model: J50 - 96111001307 (2010-12)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
46
CABLE CLAMP(ENGINE) HUS-532111190
...
23
FOOTGUARD.WIREFORM.CE HUS-532431995
...
32
KNOB HUS-532087877
...
29
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
7
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
18
WASHER,HARDEN HUS-532851074
...
40
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
37
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
xx
BAFFLE NOT SHOWN HUS-532133379
...
17
LOCKNUT HUS-532069180
...
31
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
11
SCREW HUS-532750634
...
55
BAFFLE.FRONT.20" ECON STL.GALV HUS-588548801
...
16
Washers HUS-596238701
...
14
HANDLE.KNOB.BLACK HUS-532185577
...
26
BRACKET.ASM.HDL.RT.W/HOLE.BLAC RH HUS-532170345
...
20
BLADE.20.MULCH.(50DK,6020MD) HUS-532145106
...
6
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
24
BRACKET.ADJ.5POS.ADS HUS-532407494
...
48
SCREW HUS-532183365
...
21
HINGE DEFLECTOR HUS-532088602
...
33
ARM.ASM.AXLE.5/9.POS.BZP HUS-532401179
...
5
HANDLE.LOWR.DLX.20RD.CLIP.BLAC HUS-532151590
...
34
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
4
NEEDS DESCRIPTION HUS-532196024
...
8
BRACKET.UPSTOP.RT HUS-532430034
...
15
GUARD.ECONOMY.BLACK.428 HUS-596215201
...
38
BOLT 3/8-16X1-1/8 HUS-532150406
...
13
HAIRPIN COTTER HUS-532051793
...
45
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
19
SPRING.SIDE.DISCHARGE HUS-532411832
...
42
DECAL.CUTFINGER.CE.02 HUS-581579101
...
1
BAIL.CONT.D.STRAIGHT.PUSH.ORAN HUS-532194176
...
43
NUT.CENTERLOCK.5/16- HUS-873930500
...
12
WIRE TIE HUS-532007192
...
9
SCREW HUS-871191012
...
22
HINGE ROD HUS-532150215
...
56
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
47
NEEDS DESCRIPTION HUS-532422573
...
30
B&S 09T502- 1434- B1 FOR PARTS & SERVICE 1-800-233-3723 HUS-000000000
...
3
WASHER.ENGINE.BZP HUS-532125078
...
35
Hardware HUS-596203801
...
36
WHEEL.8.1.75,H3SPK.RAD3.GY.TB1 HUS-532401272
...
41
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
2
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
xx
DECAL.INTERN.4.SYMBOL.CURVED NOT SHOWN HUS-532182191
...
57
PLATE.MULCHER.20.ECONOMY.BLK. HUS-583337601
...
27
BRACKET.ASM.HDL.LT.W/HOLE.BLAC LH HUS-532170346
...
10
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
25
ADAPTOR.BLADE.7/8 HUS-581547901
...
28
GSPH HUS-596134901
...
39
NEEDS DESCRIPTION HUS-532416695

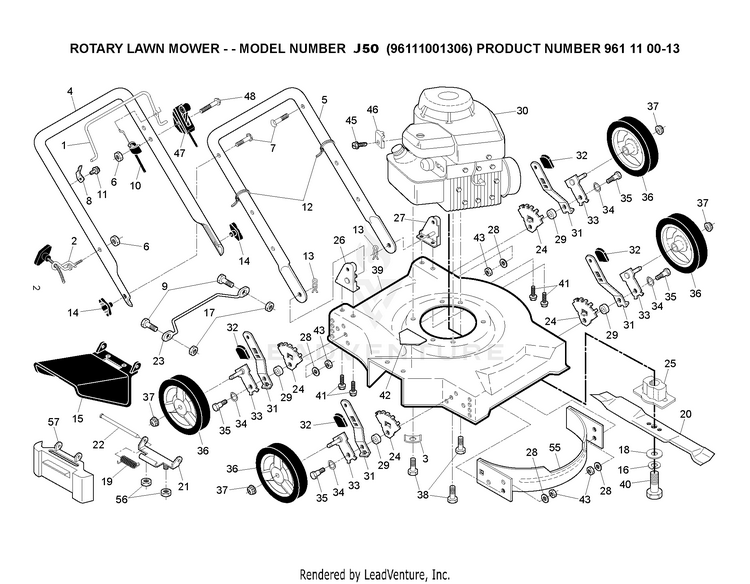

Schematic Image Zoomed
