Husqvarna J49 - 954 17 02-19 (2005-02) Walk Behind Mower

Model: J49 - 954 17 02-19 (2005-02)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
34
ADAPTOR.BLADE.7/8 HUS-581547901
...
31
Washers HUS-596238701
...
4
NEEDS DESCRIPTION HUS-532173542
...
- -
BAFFLE HUS-532133379
...
10
BRACKET.UPSTOP HUS-532850733
...
26
BLADE.20.MULCH.(50DK,6020MD) HUS-532145106
...
27
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
14
WASHER.ENGINE.BZP HUS-532125078
...
36
RIVET BLIND HUS-532128415
...
40
PROTECTOR HUS-532154147
...
- -
NEEDS DESCRIPTION HUS-532196660
...
23
DECAL.CUTFINGER.CE.02 HUS-581579101
...
22
SPACER.WHEEL.390.X1.0X.380.RTA HUS-532136624
...
17
WASHER.ENGINE.BZP HUS-532125078
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
12
NEEDS DESCRIPTION HUS-532137009
...
41
SCREW HUS-817021008
...
18
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
24
WASHER HUS-532055611
...
9
Bolt Hex Fin 1/4-20 x 1-1/2 HUS-874780424
...
16
LOCKNUT HUS-532069180
...
11
WIRE TIE HUS-532007192
...
20
AXLE BOLT HUS-532067609
...
33
NEEDS DESCRIPTION HUS-532189631
...
42
GUIDE CLIP PM HUS-532087930
...
35
BAFFLE.FRONT.20" ECON STL.GALV HUS-588548801
...
25
SCREW HUS-532750634
...
39
BRACKET HUS-532162234
...
38
NEEDS DESCRIPTION HUS-532182158
...
30
BOLT 3/8-16X1-1/8 HUS-532150406
...
8
CABLE.CONTROL.MZR.RH.SP/PUSH HUS-532700892
...
19
PROTECTOR HUS-532752052
...
2
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
6
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
28
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
1
BAIL.MZR.STD.BLACK HUS-532194177
...
21
WHEEL.7X1.5.DMD.3SPK.GREY HUS-532436482
...
15
Nuts HUS-596322601
...
29
WASHER,HARDEN HUS-532851074
...
32
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
7
NEEDS DESCRIPTION HUS-532196658
...
37
SCREW.PAN.HEAD HUS-532158755
...
- -
NEEDS DESCRIPTION HUS-532196659

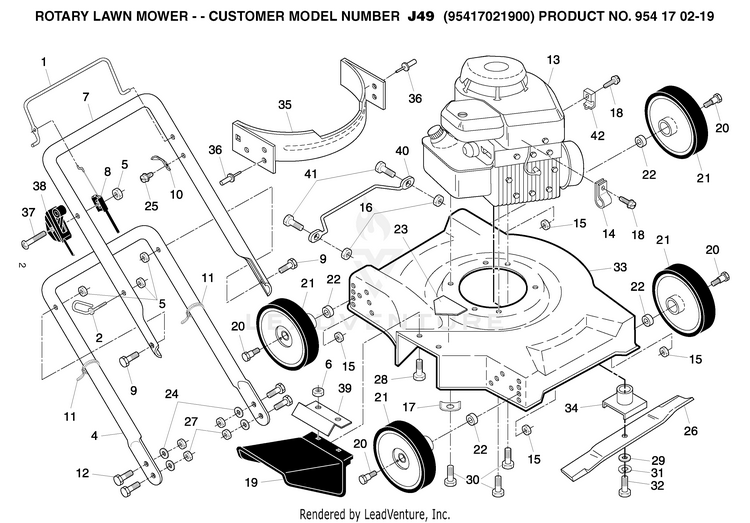

Schematic Image Zoomed
