Husqvarna J2118AA (2004) Tractor

Model: J2118AA (2004)

Back To Assemblies

Save Part Not Listed?
product name

Drive

...
...
8
Rod Shift Fender HUS-532165866
...
9
Clutch Electric HUS-532180220
...
10
Pin Cotter 1/8 x 1 CAD HUS-876020416
...
14
Washer Lock Hvy Helical HUS-810040400
...
15
Bolt Hex Flghd. 5/16-18 Gr.5 HUS-874490544
...
16
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
17
Washer 1-1/2 OD x 15/32 ID x .250 HUS-532126197
...
19
Nut HUS-873680600
...
20
SUB= 150280 HUS-532150280
...
21
Knob Deluxe HUS-532130564
...
22
Rod, Brake Hydro HUS-532169498
...
23
Bracket Anti-Rot HUS-532190736
...
24
Nut, Hex 3/8-16 HUS-873220600
...
25
SPRING, BRAKE ROD HUS-532151332
...
26
Washer HUS-819131316
...
27
Pin Cotter 1/8 x 3/4 CAD. HUS-876020412
...
28
Rod, Parking Brake HUS-532175765
...
29
Cap,Parking Brake HUS-532071673
...
30
Bracket, Transaxle HUS-532169592
...
32
HCS.5/16-18X3/4 HUS-539976934
...
34
Shaft, Foot Pedal HUS-532175578
...
35
Bearing, Nylon HUS-532120183
...
36
Washer HUS-819211616
...
37
DRIVE PIN HUS-532002882
...
38
Pulley, Composite, Flat HUS-532179114
...
39
Bolt RDHD 3/8-16 UNC x 2-3/4 Gr. 5 HUS-872110622
...
41
Keeper, Belt Idler Flat HUS-532175556
...
47
Pulley, Idler V Groove HUS-532139245
...
48
Bellcrank Grnd Clutch HUS-532154407
...
49
Retainer, Belt HUS-532123205
...
50
Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5 HUS-872110612
...
51
Nut HUS-873680600
...
52
Nut Lock Hex W/Ins. 5/16-18 Unc P HUS-873800500
...
53
LINK.CLUTCH.7.66.2005 HUS-532199652
...
55
Spring, Return, Clutch HUS-532105709
...
56
Screw 3/8-16 x 1-1/4 HUS-817060620
...
57
V-Belt, Ground Drive HUS-532140294
...
59
Keeper, Center Span HUS-532169691
...
61
Screw Hex Thdrol. 3/8-16 x 7/8 HUS-817490614
...
62
Cover, Pedal HUS-532008883
...
63
Pulley, Engine HUS-532174607
...
65
LOCKWASHER.7/16 HUS-539990247
...
66
Keeper Belt Engine Hydro HUS-532154778
...
71
Strap Torque Lh Hydro HUS-532169183
...
73
Strap Torque Rh Hydro HUS-532169182
...
74
Spacer, Axle HUS-532137057
...
75
Washer 25/32 x 1-1/4 x 16 Ga. HUS-532121749
...
76
E-Ring HUS-812000001
...
77
Key, Square HUS-532123583
...
78
Washer 25/32 x 1-5/8 x 16 Ga. HUS-532121748
...
81
Shaft Asm Cross Tapered 510 20" HUS-532165596
...
82
Spring Torsion T/A HUS-532165711
...
83
BUSHING HUS-734117771
...
84
Link Transaxle HB-0510 HUS-532169594
...
89
Console, Shift HUS-532166602
...
90
Nut, Self Thd Wsh Hd 1/4 Zinc HUS-532124346
...
95
Control Asm. Bypass Hydro HUS-532170201
...
96
RETAINER M HUS-532004497
...
116
Bolt, Carriage 3/8-16 x 1 Gr. 5 HUS-872110608
...
120
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409148
...
150
Spacer Retainer HUS-532175456
...
151
WASHER.13/32 X 1 X 1/2.11GUARD HUS-532413524
...
156
Washer Srrted 5/16ID x 1.125 HUS-532166002
...
158
BRACKET.SHIFT.MOUNT HUS-532437458
...
159
HUB.SHIFT HUS-532444304
...
161
BOLT, HEX HEAD HUS-872110407
...
162
Nut Crownlock 1/4-20 Unc HUS-873680400
...
163
Bolt Hex Fin 1/4-20 Unc x 1 Gr 5 HUS-874780416
...
164
WASHER - M6 HUS-734115201
...
165
BRACKET.PIVOT.LEVER HUS-532438250
...
166
Screw 5/16-18 x 5/8 HUS-817490510
...
168
Bolt Shoulxder 5/16-18 x .561 HUS-532165492
...
169
Plate Fasteneing Lt HUS-532165580
...
197
Nylinder Snap-In HUS-532169613
...
198
Washer Nyl. 7/8 ID x .105" HUS-532169593
...
199
Bolt Shoulder 5/16-18 HUS-532169612
...
200
Bolt Rdhd Sqnk 5/16-18 x 1 HUS-872140508
...
202
Bolt Rdhd 3/8-16 x 1-3/4 Gr 5 HUS-872110614
...
212
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
271
Screw Hex Wsh Thdr 3/8-16 x 3/4 BL HUS-817000612

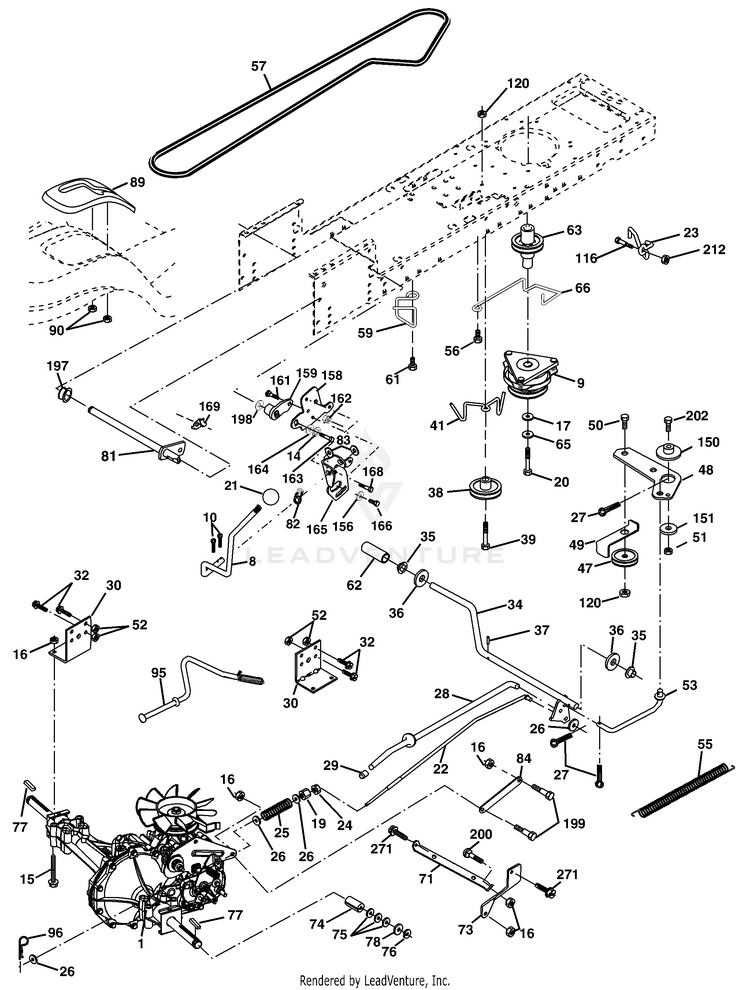

Schematic Image Zoomed
