Husqvarna J2118AA (2004) Tractor

Model: J2118AA (2004)

Back To Assemblies

Save Part Not Listed?
product name

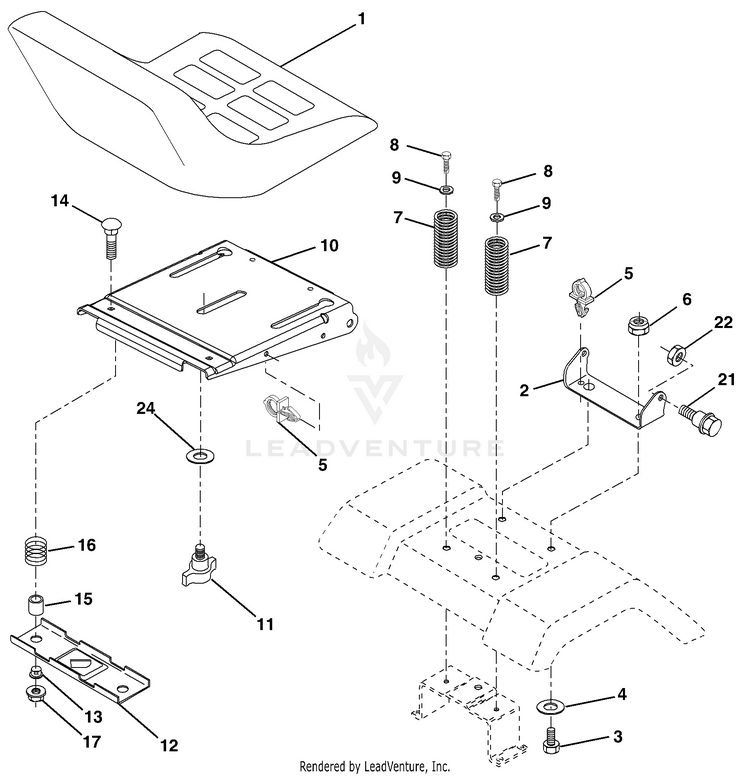

Seat Assembly

...
...
1
Seat HUS-532188706
...
2
Bracket Pivot HUS-532180166
...
3
Bolt Hex 3/8-16unc x 1 HUS-871110616
...
4
Washer 13/32 x 1 x 10 Ga HUS-819131610
...
5
Clip Push-In Hinged HUS-532145006
...
6
Nut HUS-873680600
...
7
SRPING.SEAT HUS-539110300
...
8
Screw 3/8-16 x 1.5 SMGML HUS-817000616
...
9
Washer 13/32 x 1 x 12 Ga. HUS-819131612
...
10
Pan Seat HUS-532180186
...
11
Knob Seat Adj Wingnut HUS-532166369
...
12
Bracket Mounting Switch HUS-532174648
...
13
Bushing Snap Blk Nyl 50 Id HUS-532121248
...
14
Bolt Rdhd Sht Nk 1/4-20 x 1-1/2 HUS-872050412
...
15
Spacer Split 28x 88 Zinc HUS-532121249
...
16
Spring Cprsn 1 310 Blk Pnt HUS-532123740
...
17
Nut Crownlock 1/4-20 unc HUS-873680400
...
21
Bolt Shoulder 5/16-18 Unc-2A HUS-532171852
...
22
Nut Lock 5/16-18 HUS-873800500
...
24
Washer 17/32 x 1-3/16 x 12 Ga HUS-819171912
