product name

Husqvarna Husqvarna 24 R (1983-01) Line Trimmer

Model: Husqvarna 24 R (1983-01)

Save
 Part Not Listed?Part Not Listed?
product name

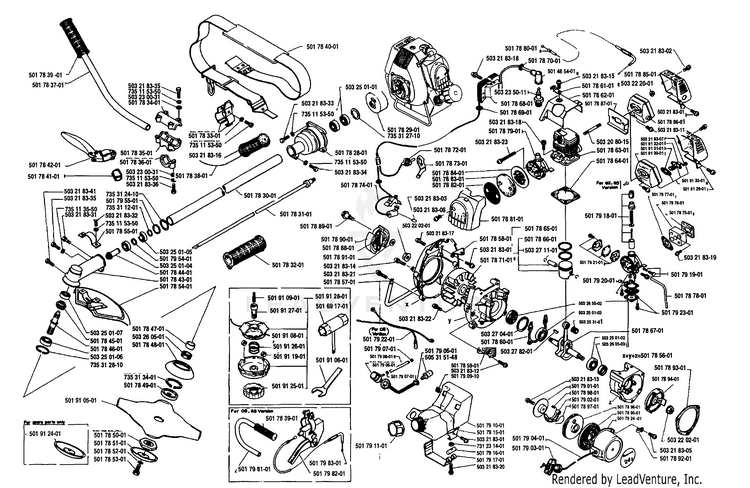

General Assembly

...
...
501783901
Handle HUS-501783901
...
501783701
HUS-501783701
...
503218335
Screw 6x25 HUS-5032183-35
...
735115350
SPRING WASHER 6.4X11 HUS-735115350
...
503230031
Washer 6.4x14 HUS-5032300-31
...
501783401
HANDLE HOLDER,UPPER HUS-501783401
...
501784201
HUS-501784201
...
501783501
Handle Holder,Lower HUS-501783501
...
501783601
Bracket HUS-501783601
...
503230031
Washer 6.4x14 HUS-5032300-31
...
735115350
SPRING WASHER 6.4X11 HUS-735115350
...
503218336
Screw 6x30 HUS-5032183-36
...
501784101
HUS-501784101
...
503218341
SCREW 8X10 HUS-503218341
...
735312410
Retaining Ring Sgh 22 HUS-735312410
...
503218335
Screw 6x25 HUS-5032183-35
...
501795501
Spacer HUS-501795501
...
735311201
Snap Ring, 24r HUS-735311201
...
735113550
SPRING WASHER 6.4X11 HUS-735115350
...
503218331
Screw 6x10 HUS-503218331
...
503218332
Screw 6x18 HUS-503218332
...
735115350
SPRING WASHER 6.4X11 HUS-735115350
...
501785501
Safety Cover Band HUS-501785501
...
501784701
Spacer HUS-501784701
...
503260501
SEALING RING HUS-503260501
...
501784801
Stabilizer HUS-501784801
...
503250107
BALL BEARING HUS-503250107
...
501784501
GEAR WHEEL HUS-501784501
...
501784601
HUS-501784601
...
735312810
RETAINING RING SGH 28 HUS-735312810
...
503250106
BALL BEARING HUS-738210110
...
735313401
Retaining Ring Sga 36 HUS-735313401
...
501784901
Boss HUS-501784901
...
501910501
SCRUB BLADE 255MM HUS-501910501
...
501912401
HUS-501912401
...
501785001
Boss HUS-501785001
...
501785101
CUP HUS-501785102
...
501785201
WASHER HUS-501785202
...
501785301
BOLT NLA HUS-501785301
...
501783301
HANGING BKT SHOULDER HARNESS HUS-501783301
...
735115350
SPRING WASHER 6.4X11 HUS-735115350
...
503218316
SCREW 5X14 HUS-503218316
...
501783801
HUS-501783801
...
501783001
DRIVE TUBE HUS-501783001
...
503250105
BALL BEARING HUS-503250105
...
501795401
Spacer HUS-501795401
...
503250104
Ball Bearing HUS-503250104
...
501784401
PINION HUS-501784401
...
501784301
GEAR HOUSING HUS-501784301
...
501785401
HUS-501785401
...
501783901
Handle HUS-501783901
...
501798301
HUS-501798301
...
501798201
THROTTLE LEVER HUS-501798201
...
501798101
HANDLE ASSY HUS-502146701
...
501791101
TANK CAP HUS-502192101
...
501912501
SUPPORTING KNOB HUS-501912501
...
501911901
EYELET HUS-501911901
...
501910601
Spanner HUS-501910601
...
501912601
SPRING HUS-501912601
...
501910801
USE 502 047701 NYLON CORD HUS-501910801
...
501912701
ADAPTER NLA HUS-501912701
...
501691701
COMBINATION WRENCH COMBI TOOL HUS-531222001
...
501910901
BOLT HUS-501910901
...
501912801
MANUAL HEAD, SWEDISH CPL HUS-501912801
...
501785701
HUS-501785701
...
503218321
SCREW 5X25 HUS-503218321
...
503218314
HUS-503218314
...
501783201
Handle HUS-501783201
...
501789101
Washer HUS-5017891-01
...
501788801
SPRING HUS-501788801
...
501789001
CLUTCH ASSY HUS-502166201
...
501788901
BOLT HUS-501788901
...
501783101
DRIVE SHAFT HUS-501783101
...
501787401
CONTACT BREAKER ASS'Y HUS-501787401
...
503218334
Screw 6x22 HUS-503218334
...
735115350
SPRING WASHER 6.4X11 HUS-735115350
...
501782801
Clutch Cover HUS-501782801
...
735115350
SPRING WASHER 6.4X11 HUS-735115350
...
503218333
Screw 6x20 HUS-5032183-33
...
503250101
Ball Bearing Mfg Koyo HUS-503250101
...
501784001
Harness HUS-5017840-01
...
501782901
CLUTCH DRUM HUS-501782901
...
735312710
RETAINING RING SGH 26 HUS-735312710
...
501787201
HUS-501787201
...
501787301
HUS-501787301
...
501788401
Filter Holder HUS-501788401
...
501788301
FILTER ELEMENT HUS-501788301
...
501788201
SCREEN HUS-501788201
...
503218303
HUS-503218303
...
503218306
Screw 4x25 HUS-503218306
...
503220201
Flange Nut HUS-5032202-01
...
503218317
SCREW NLA HUS-502185101
...
503218322
SCREW 5X30 HUS-503218322
...
501792201
HUS-501792201
...
501790701
PIPE CLIP HUS-501790701
...
501790801
PIPE HUS-501787801
...
501790501
PRIMER PUMP HUS-501790501
...
501790701
PIPE CLIP HUS-501790701
...
501790601
FUEL HOSE HUS-501790601
...
505315148
KIT FUEL FILTER HUS-591375401
...
501785901
HUS-501785901
...
503218312
HUS-503218312
...
501790910
HUS-501790910
...
503218320
Screw 5x25 HUS-5032183-20
...
501791701
HUS-501791701
...
501791601
HUS-501791601
...
731231401
NUT HUS-731231401
...
503218301
HUS-503218301
...
501791501
HUS-501791501
...
501791001
HUS-501791001
...
501790401
Starter Rope HUS-5017904-01
...
501790301
HUS-501790301
...
501789201
HUS-501789201
...
503218305
HUS-503218305
...
503220201
Flange Nut HUS-5032202-01
...
501792401
HUS-501792401
...
501789501
HUS-501789501
...
501789601
HUS-501789601
...
503218313
HUS-503218313
...
501790101
HUS-501790101
...
501789801
HUS-501789801
...
501790201
HUS-501790201
...
501789701
HUS-501789701
...
501789401
HUS-501789401
...
501789301
HUS-501789301
...
501785601
HUS-501785601
...
501786701
HUS-501786701
...
501792301
Diaphragm Cover Compl HUS-501792301
...
501787801
PIPE HUS-501787801
...
501791901
HUS-501791901
...
503218319
SCREW 5 X 23 HUS-502169901
...
503260503
Sealing Ring HUS-5032605-03
...
503250102
Ball Bearing HUS-5032501-02
...
503253101
NEEDLE BEARING HUS-503253101
...
503250103
Ball Bearing HUS-503250103
...
503260502
HUS-503260502
...
501792001
REPAIR KIT HUS-501950901
...
501792101
REPAIR KIT HUS-501950801
...
501788101
HUS-501788101
...
501786501
PISTON CPL HUS-501949401
...
501786601
PISTON RING HUS-501786601
...
503271101
Retaining Ring HUS-5032711-01
...
501785801
HUS-501785801
...
503218301
HUS-503218301
...
501787101
HUS-501787101
...
503218323
Screw 5x48 HUS-503218323
...
501787901
HUS-501787901
...
503218318
Screw W/Washer 5x20 HUS-5032183-18
...
501786901
HUS-501786901
...
501786801
HUS-501786801
...
503235011
SPARK PLUG M14X1.25 NGK BPMR7A HUS-503235111
...
501485401
SPARK PLUG CONN. KIT HUS-501485402
...
501788001
THROTTLE WIRE NLA HUS-501952901
...
503218318
Screw W/Washer 5x20 HUS-5032183-18
...
501787001
HUS-501787001
...
503218302
HUS-503218302
...
501788501
HUS-501788501
...
503222001
STOVER NUT M5 HUS-503222001
...
501788701
HUS-501788701
...
501786201
HUS-501786201
...
501786101
HUS-501786101
...
503218315
HUS-503218315
...
503218301
HUS-503218301
...
501788601
HUS-501788601
...
503218311
Screw 5x8 HUS-5032183-11
...
503218307
Screw HUS-503218307
...
501913201
HUS-501913201
...
501913101
HUS-501913101
...
501913001
HUS-501913001
...
503208015
HUS-503208015
...
501786301
HUS-501786301
...
501786401
HUS-501786401
...
501913301
HUS-501913301
...
501912901
HUS-501912901
...
501787701
HUS-501787701
...
501787601
HUS-501787601
...
501787501
HUS-501787501
...
501791801
HUS-501791801
...
503270401
HUS-503270401
...
501786001
HUS-501786001
...
503278201
HUS-503278201
...
...
...
