Husqvarna HVT 40 (2002-04) Hedge Trimmer

Model: HVT 40 (2002-04)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Spare Parts

...
...
514925900
Wing Nut HUS-514925900
...
514633800
Washer, Cup Type HUS-514633800
...
510676300
COVER HUS-510676300
...
513861001
Handle Assy Upper HUS-513861001
...
512760400
FILTER HUS-512760400
...
513861300
SWITCH HUS-513861300
...
513860200
UPPER SWITCHBOX HUS-513860200
...
513860300
LOWER SWITCHBOX HUS-513860300
...
514667200
SCREW HUS-514667200
...
514987700
Cable HUS-514987700
...
514715000
Cable Tie HUS-514715000
...
514026600
WASHER HUS-514026600
...
514718000
Nut HUS-514718000
...
725237851
SCREW HUS-725237851
...
511836201
Lower Handle HUS-511836201
...
514924100
Nut HUS-514924100
...
514960700
Decal HUS-514960700
...
514931300
Washer HUS-514931300
...
510662501
Engine Cowl/Starter HUS-510662501
...
514931300
Washer HUS-514931300
...
510683902
Adaptor Plate HUS-510683902
...
514026603
WASHER HUS-514026603
...
514158501
Screw HUS-514158501
...
514978900
Gasket HUS-514978900
...
514715000
Cable Tie HUS-514715000
...
725238051
SCREW M6X50 HUS-725238051
...
514718000
Nut HUS-514718000
...
514026600
WASHER HUS-514026600
...
514026600
WASHER HUS-514026600
...
513860000
WARNING LABEL HUS-513860000
...
512772664
HOOD - HVT HUS-512772664
...
513804100
LABEL "FINGER WARNING" HUS-513804100
...
513790500
LABEL:"STEP HERE" HUS-513790500
...
514984700
DECAL HUS-514984701
...
514978900
Gasket HUS-514978900
...
514983700
Screw HUS-514983700
...
513066500
Key HUS-513066500
...
514979000
BUSHING HUS-514979000
...
734114741
WASHER HUS-734114741
...
513905281
HUS HOVERING TRIMMER LINE 20PK HUS-513905289
...
514984501
Bolt HUS-514984501
...
511838201
IMPELLAR ASSY HUS-511838201
...
513859901
DISC SPACER HUS-513859901
...
513859900
DISC SPACER HUS-513859900
...
511908100
CUTTING DISC HUS-511908100
...
513083000
HUS-513083000
...
514098000
FLAT WASHER HUS-514098000

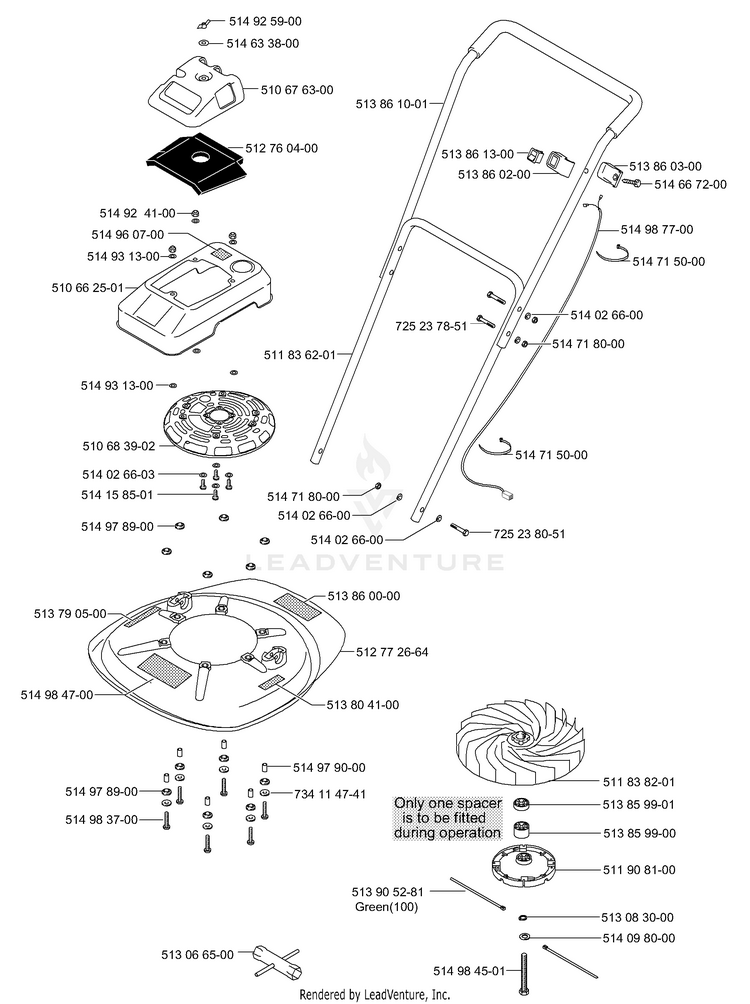

Schematic Image Zoomed
