Husqvarna HVT 1500 (1997-05) Trimmer

Model: HVT 1500 (1997-05)

Back To Assemblies

Save Part Not Listed?
product name

Hovering Trimmer

...
...
963107293
HUS-963107293
...
514925900
Wing Nut HUS-514925900
...
510676300
COVER HUS-510676300
...
512760400
FILTER HUS-512760400
...
510662501
Engine Cowl/Starter HUS-510662501
...
514917200
LABEL "FUEL MIXTURE" HUS-514917200
...
531030427
HUS-531030427
...
531030396
TC300 TECUMSEH ENGINE NLA HUS-531030396
...
514944300
HUS-514944300
...
510666000
ENGINE ADAPTOR HUS-510666000
...
513790500
LABEL:"STEP HERE" HUS-513790500
...
513790600
LABEL:"HOT MUFFLER" HUS-513790600
...
531030429
DECAL HVT/LOGO NLA HUS-531030429
...
510620403
HUS-510620403
...
514026600
WASHER HUS-514026600
...
514158501
Screw HUS-514158501
...
513790302
HVT TRIMMER LINE HUS-513790302
...
511793500
CUTTING DISC/HVT1200-1500 HUS-511793500
...
514950800
HUS-514950800
...
514957300
HUS-514957300
...
514964700
HUS-514964700
...
514934400
HUS-514934400
...
511785100
LEVER/UPSTOP LATCH HUS-511785100
...
514042300
CLIP/SPRING HUS-514042300
...
514009203
PIN/PIVOT HUS-514009203
...
625908800
HUS-625908800
...
511800003
IMPELLAR HUS-511800003
...
514633800
Washer, Cup Type HUS-514633800
...
514673100
SCREW-ON/OFF SWITCH HUS-514673100
...
514715000
Cable Tie HUS-514715000
...
514718000
NUT M6 NYLOC GME/D HUS-514718000
...
514948000
HUS-514948000
...
513649903
ON/OFF SWITCH W/CABLE HUS-513649903
...
514931300
Washer HUS-514931300
...
511781202
HUS-511781202
...
511781301
HANDLE/LOWER HUS-511781301
...
514860602
HUS-514860602
...
514158501
Screw HUS-514158501
...
513833800
HUS-513833800
...
513804100
LABEL "FINGER WARNING" HUS-513804100

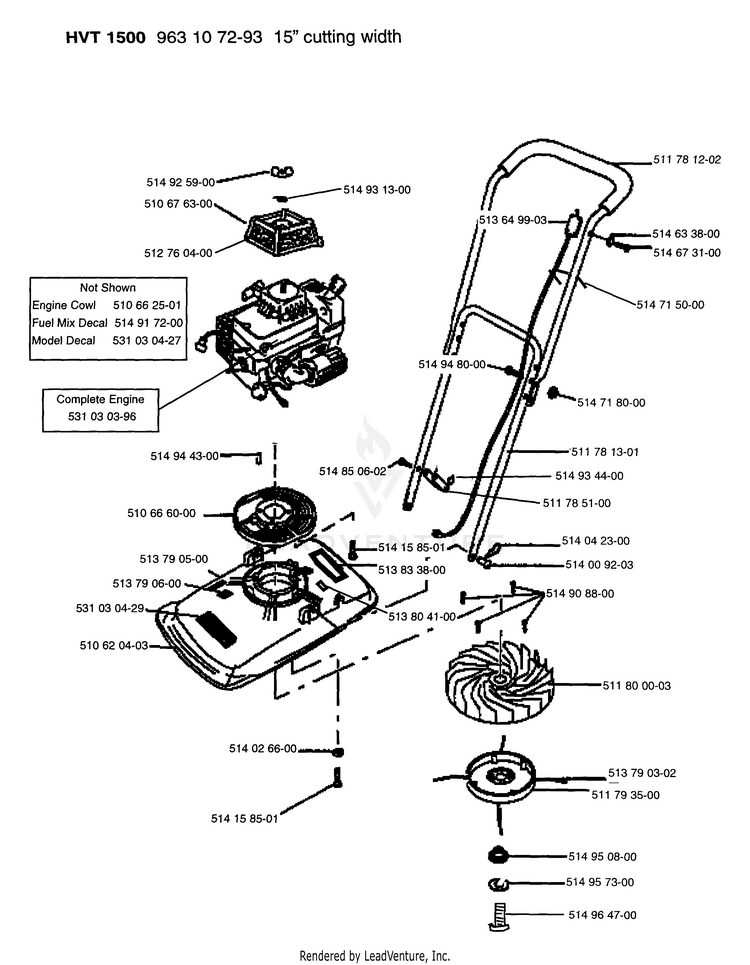

Schematic Image Zoomed
