Husqvarna HVGTV 160 AR (1990-01) Ride Mower

Model: HVGTV 160 AR (1990-01)

Back To Assemblies

Save Part Not Listed?
product name

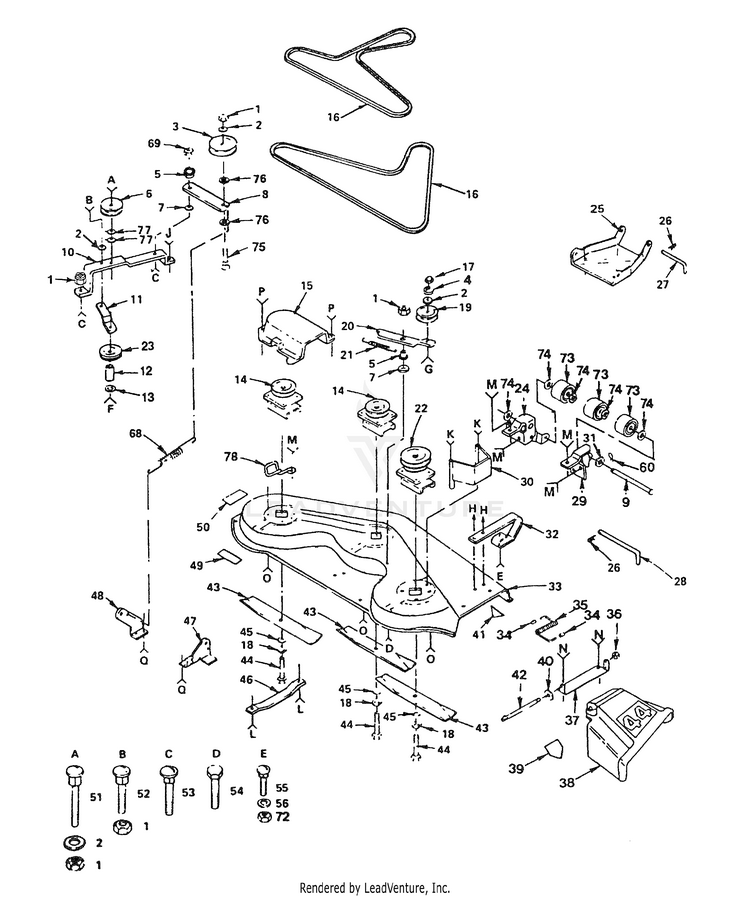

Mower

...
...
1
Nuts HUS-596322601
...
2
Washers HUS-596140201
...
3
PULLEY.IDLER.FLAT.MOWER.BLK.PT HUS-532121316
...
4
Washers HUS-596238701
...
5
SPACER RETAINER HUS-532106902
...
6
IDLER-INSIDE T HUS-532124858
...
7
WASHER, WEAR LT (1 2) HUS-532106513
...
8
ARM IDLER HUS-532121425
...
9
PIVOT PIN T HUS-532109776
...
10
BAR-SUPPORT YT HUS-532106523
...
11
BRACE-IDLER YT HUS-532106522
...
12
SPACER HUS-532121236
...
13
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
14
MANDREL ASM SEC 44/50 HUS-532136819
...
15
GUARD YT HUS-532106214
...
16
V-BELT T HUS-532106085
...
17
NUT.HEX.3/8-16UNC HUS-873220600
...
18
Washers HUS-596238701
...
19
IDLER.FLAT.GTV HUS-532102932
...
20
ARM-IDLER YT HUS-532106526
...
21
SPRING HUS-532007644
...
22
JACKSHAFT YT HUS-532121705
...
23
IDLER-FLAT T HUS-532102403
...
24
BRACKET LH YTH HUS-532109599
...
25
LINK,PARALLEL HUS-532105662
...
26
COTTER PIN HUS-532004921
...
27
ROD,FRT PARALL LT HUS-532105744
...
28
HINGE PIN T HUS-532109835
...
29
BRACKET RH YTH HUS-532109600
...
30
GUARD BELT HYT HUS-532108119
...
31
Washers HUS-596040101
...
32
RUNNER-RH HUS-532136321
...
33
MOWER HOUSING HUS-532144729
...
34
CAP-SLEEVE LT HUS-532105304
...
35
SPRING TORSION HUS-532123713
...
36
NUT PUSH M HUS-532110452
...
37
SERVICE KIT BRACKET BRACKET HUS-531155201
...
38
DEFLECTOR SHIELD HUS-532109785
...
39
DECAL WARNING HUS-532121349
...
40
Washer 11/32 x 5/8 x 16 Ga HUS-819111016
...
42
ROD-HINGE T HUS-532106735
...
43
BLADE.106635X.44(NLA) HUS-532025034
...
44
BOLT.3/8-24X1-1/2 HUS-874610624
...
45
GSPH HUS-596134901
...
46
RUNNER LH HUS-532007631
...
47
BRKT SUSP REAR RH HUS-532123807
...
48
BRKT SUSP REAR LH HUS-532123808
...
49
DECAL HYT HUS-532108592
...
50
DECAL-INST YT HUS-532105185
...
51
Bolts HUS-596987501
...
52
Bolts HUS-596728201
...
53
Bolt-Carriage 3/8-16 x 1-1/2 HUS-872140612
...
54
BOLT HUS-874760620
...
55
GSPW Bolts HUS-595901601
...
56
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
60
Pins HUS-596029501
...
68
SPRING.EXT.8.5" HUS-532102727
...
69
Nuts HUS-596322601
...
72
LOCKNUT HUS-532124949
...
73
ROLLER T HUS-532109729
...
74
Washers HUS-596040101
...
75
Bolts HUS-596337801
...
76
GSPH HUS-596134901
...
77
GSPH HUS-596134901
...
78
BELT RETIANER HUS-532121352
...
xx
MOWER DECK COMPLETE NLA HUS-532131508
