Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

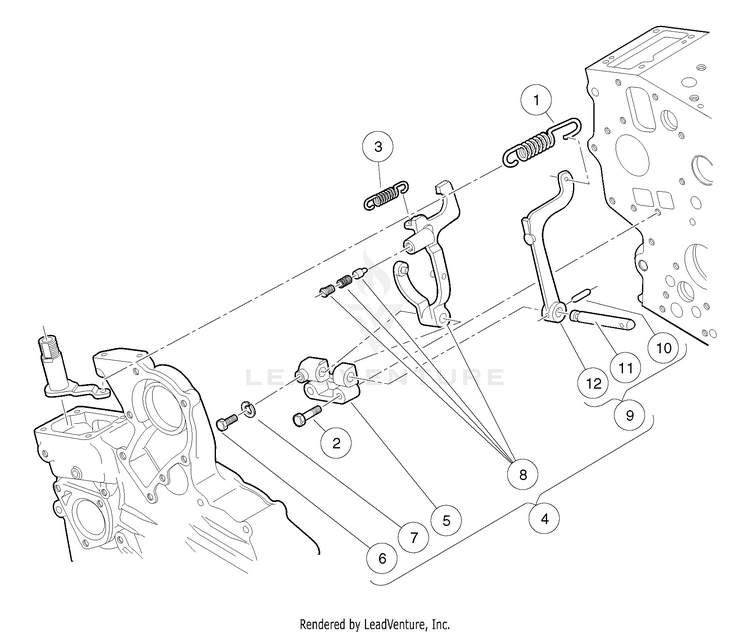

Governor Components

...
...
1
Spring, Governor HUS-102635101
...
2
Bolt, M5 X 0.75 X 25 HUS-102636301
...
3
Spring, Start HUS-102800201
...
4
Assembly, Governor Fork (includes items 5 through 9) HUS-102800301
...
5
Holder, Fork Lever HUS-102636201
...
6
Bolt, M5 X 0.75 X 11 HUS-102636401
...
7
Washer, Spring, M5 HUS-102636501
...
10
Pin, Spring HUS-102633601
...
11
Shaft, Fork Lever HUS-102636601
