Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

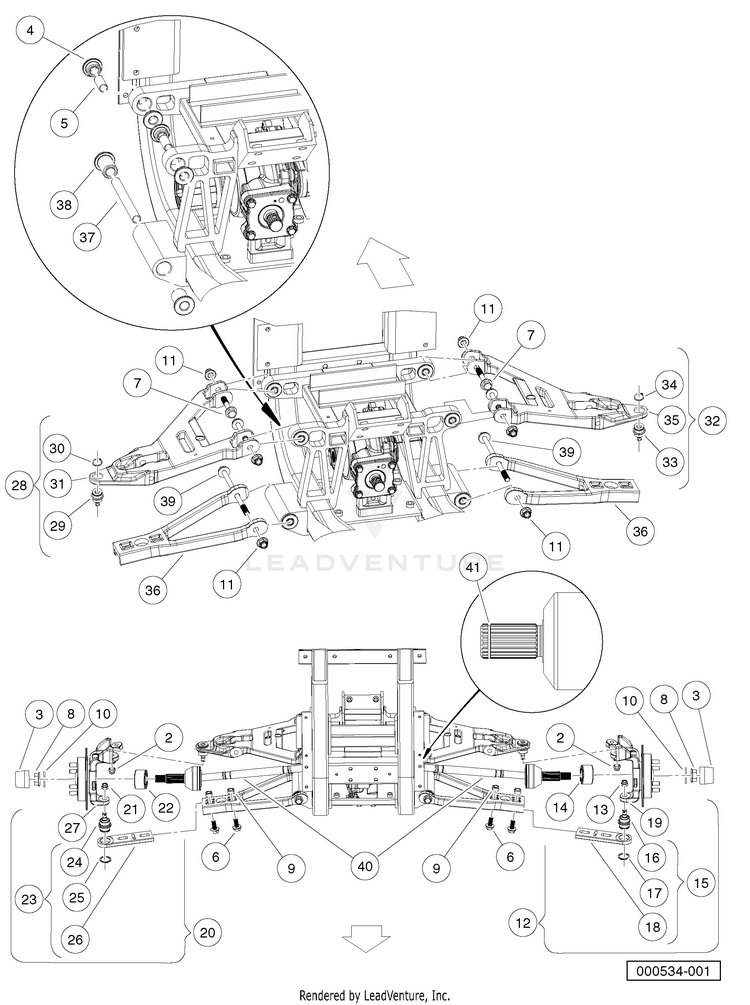

Front Suspension -A-Arms

...
...
2
Locknut, M12-1.25 Nylon HUS-102022901
...
3
Center Cap, Rubber HUS-102274101
...
4
Bushing, A-Arm HUS-102408401
...
5
Sleeve, Upper HUS-102437001
...
6
Bolt, Flange Head, M12x 1.75x 30 with Loctite HUS-102490801
...
7
Bolt, Flange Head, M12 X 1.75 X 70 HUS-102616301
...
8
Nut Flg, M22 X 1.5 Mech Def HUS-102617501
...
9
Nut, Square, M12x 1.75 HUS-102617701
...
10
Washer Hard, M22 HUS-102617801
...
11
Nut Flg, M12x1.75, Nylon Gr 10 HUS-102620501
...
12
Upright, Left-Hand (includes items 13 through 19) HUS-102791701
...
13
Locknut, M12-1.25 Nylon HUS-102022901
...
14
Bearing HUS-102464301
...
15
Asm, Adjuster, Slide (includes items 16 through 18) HUS-102874301
...
16
Joint, Ball HUS-102361901
...
17
Ring, Retaining, Ext, 1-1/4" HUS-102722301
...
18
Slide, Adjuster HUS-102874201
...
19
Upright, Finished, Lh HUS-103277001
...
20
Upright, Right-Hand (includes items 21 through 27) HUS-102791702
...
21
Locknut, M12-1.25 Nylon HUS-102022901
...
22
Bearing HUS-102464301
...
23
Asm, Adjuster, Slide (includes items 24 through 26) HUS-102874301
...
24
Joint, Ball HUS-102361901
...
25
Ring, Retaining, Ext, 1-1/4" HUS-102722301
...
26
Slide, Adjuster HUS-102874201
...
27
Upright, Finished, Rh HUS-103277002
...
28
Asm, A-Arm, Upper, Left (includes items 29 through 31) HUS-102792001
...
29
Joint, Ball HUS-102361901
...
30
Ring, Retaining, Ext, 1-1/4" HUS-102722301
...
31
Arm, Upper, Wide, Machined, Lh HUS-102927101
...
32
Asm, A-arm, Upper, Right (includes items 33 through 35) HUS-102792002
...
33
Joint, Ball HUS-102361901
...
34
Ring, Retaining, Ext, 1-1/4" HUS-102722301
...
35
Arm, Upper, Wide, Machined,rh HUS-102927102
...
36
A-Arm, Lower HUS-102874501
...
36
Sleeve, Lower Arm HUS-103256401
...
38
Bushing, Lower Arm HUS-103256501
...
39
Bolt Flg, M12 X 1.75 X 200 10. HUS-103256701
...
40
Half Shaft, Wide, Awd HUS-103296201
...
41
Ring, Hog, Half Shaft HUS-103345801
