Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

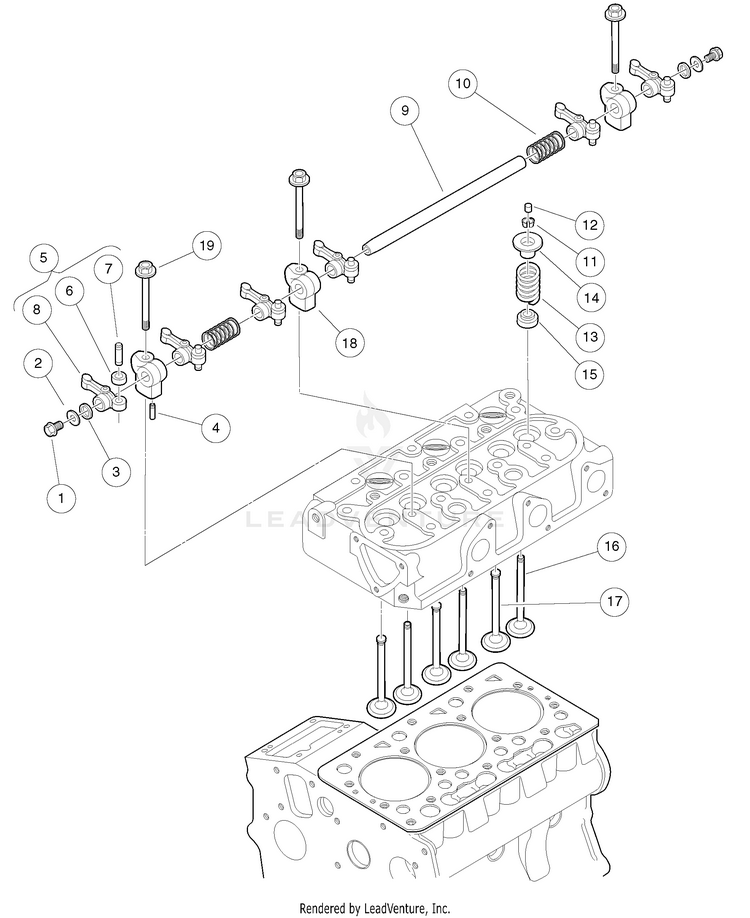

Valves And Rocker Arms

...
...
1
Bolt, M6 X 1 X 8 HUS-102646401
...
2
Washer, D722, Plain, Rocker HUS-102651301
...
3
Washer, Rocker Arm HUS-102651601
...
4
Pin, Spring, D722, Rocker HUS-102651801
...
5
Assy Rocker Arm (includes items 6 through 8) HUS-102652001
...
6
Nut, M6 HUS-102651501
...
7
Screw-Adjusting HUS-102651701
...
9
Shaft, Rocker Arm HUS-102652601
...
10
Spring, Rocker Arm HUS-102652701
...
11
Collet, Valve Spring, Set HUS-102652901
...
12
Cap, Valve, D722 HUS-102653001
...
13
Spring, Valve HUS-102653101
...
14
Retainer, Spring HUS-102653201
...
15
Seal, Valve Stem HUS-102653301
...
16
Valve, Exhaust HUS-102653601
...
17
Valve, Inlet HUS-102653701
...
18
Bracket, Rocker Arm, D722 Closed-Breather HUS-102801101
...
19
Bolt, Rocker Arm HUS-102801201
