Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

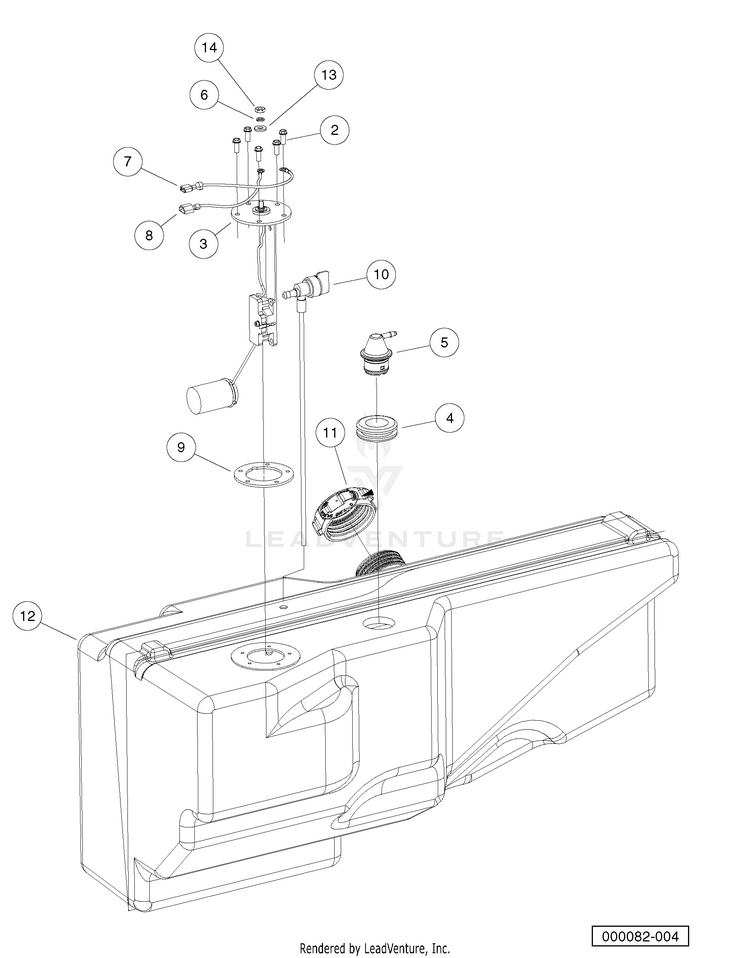

Fuel Tank - Gasolilne Vehicles

...
...
1
Asm, Tank, Fuel, Gas, 4x4 (includes items 2 through 14) HUS-102952102
...
2
Screw, #10-16 Hex-Head Hi-Lo HUS-1013461
...
4
Insulation Grommet HUS-1015139
...
5
Vent, Fuel Tank HUS-1015143
...
6
Washer, #10 Split Lock HUS-1016
...
9
Gasket, Rubber HUS-102522001
...
10
Valve, Pickup Tube, Fuel HUS-102670901
...
11
Cap, Fuel Tank, Gasoline HUS-102751601
...
13
Washer, #10 Type A Flat HUS-183
...
14
Nut, #10-32 Brass Hex HUS-8797
