Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

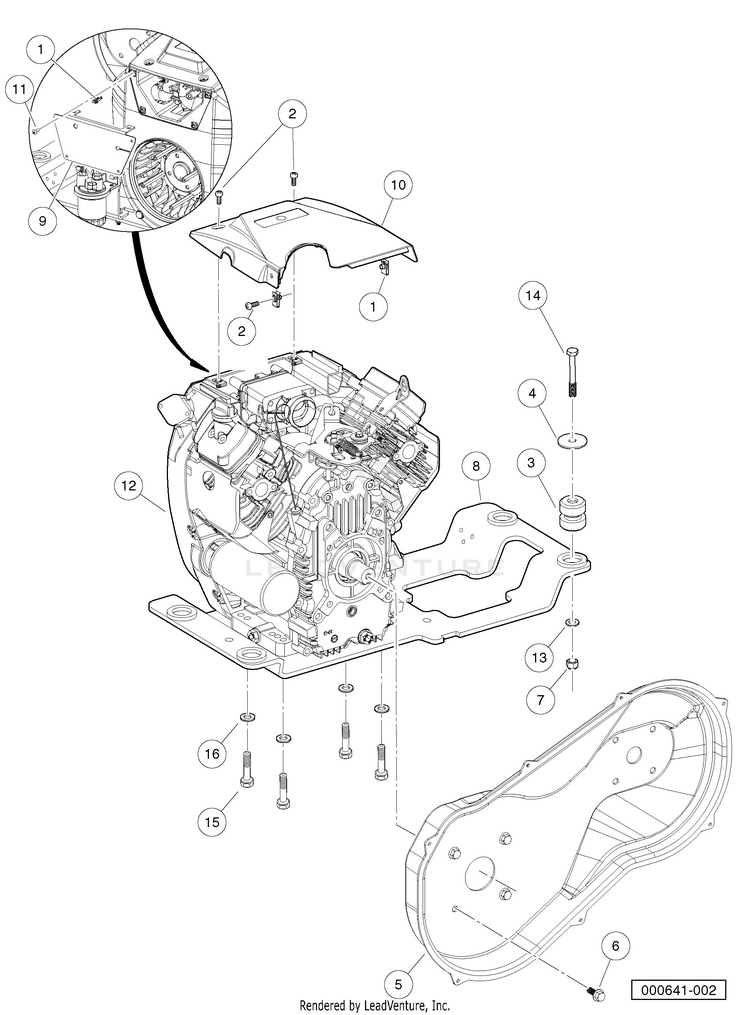

Kawasaki FH680D Gasoline Engine Mounting

...
...
1
U-nut, M6-1.0 Prev Torque HUS-102296601
...
2
Screw, M6 Torx Bttn Hd Sems HUS-102296920
...
3
Isolator Ring and Bushing HUS-102370501
...
4
Washer, Snubbing, Ring N Bush HUS-102370601
...
5
Cover, CVT Inner, FH680D HUS-102462503
...
6
Bolt Flanged Head, 3/8-16x1.0 with Loctite HUS-102491001
...
7
Locknut, M12x1.75 Nylon Insert HUS-102740401
...
8
Weldment, Eng Mnt, Kaw, Fh680d HUS-102951901
...
9
Engine, Front Cover, Fh680d HUS-103208701
...
10
Cover, Engine, Top HUS-103262901
...
11
Screw, Pn Hd Blk, 10-16 X .625 HUS-103279201
...
12
Engine, Kawasaki, FH680D HUS-103528201
...
13
Washer, M12 Hard HUS-96701412
...
14
Bolt, M12 X 1.75 X 90 HUS-96704721
...
15
Bolt, M10 X 1.5 X 60 HUS-96704960
...
16
Washer, M10 Hard HUS-96741046
Schematic Image Zoomed
