Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?

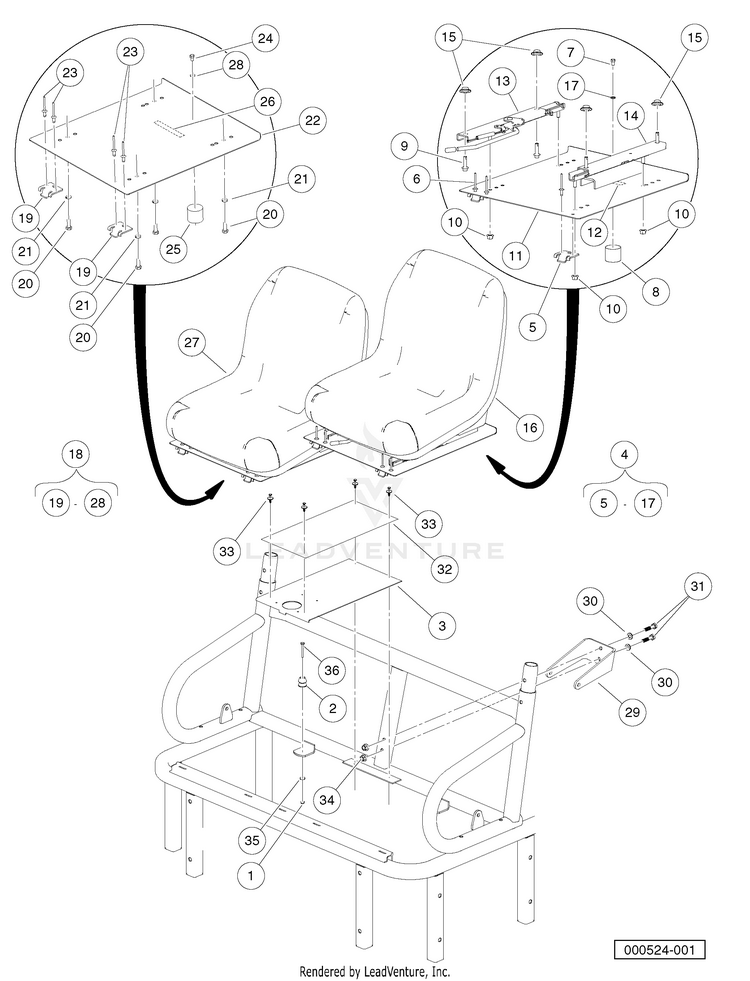

product name

Bucket Seats - Gray

...
...
1
Locknut, M6-1.00 Nylon Insert HUS-101887601
...
2
Seat Holder Base HUS-102059001
...
3
Pan, Center, Closeout HUS-102442001
...
4
Asm, Bucket Seat Adjustable (includes items 5 through 17) HUS-102473701
...
5
Hinge Plate HUS-1011652
...
6
Rivet, 1/4 X .438 Blind HUS-102047001
...
7
Screw, 6m-1.00 X 10mm Hex Head HUS-102059401
...
8
Seat Holder Cup HUS-102061101
...
9
Bolt, Flange Head, M8 X 30.0 HUS-102298130
...
10
Nut,m8,all Metal Lock HUS-102298401
...
11
Pan, Seat, Driver Asm HUS-102456001
...
12
Decal, Hot Surface Warning HUS-102458901
...
13
Adjuster, Forward/Aft HUS-102473501
...
14
Adjuster, Slider HUS-102473601
...
15
Washer, Bell HUS-102475901
...
16
Seat, Bucket, Gray HUS-103267001
...
17
Lockwasher, 1/4 Helical Split HUS-451
...
19
Hinge Plate HUS-1011652
...
20
Screw, M8-125 X 22 Hex-Head HUS-1012830
...
21
Lockwasher, 8mm Split HUS-1013734
...
22
Pan, Seat, Passenger HUS-102023703
...
23
Rivet, 1/4 X .438 Blind HUS-102047001
...
24
Screw, 6m-1.00 X 10mm Hex Head HUS-102059401
...
25
Seat Holder Cup HUS-102061101
...
26
Decal, Hot Surface Warning HUS-102458901
...
27
Seat, Bucket, Gray HUS-103267001
...
28
Lockwasher, 1/4 Helical Split HUS-451
...
29
Bracket, Seatbelt, Bolt-On HUS-102670601
...
30
Washer, Hard, M10, Zn-Ni/Blk HUS-102718101
...
31
Bolt, M10 X 45, Zn-Ni (Black) HUS-102732401
...
32
Cover, Center Console HUS-102763701
...
33
Rivet, Removable, Tuflok 1/4" HUS-102967901
...
34
Nut, Flanged, M10 x 1.5, Black HUS-103216401
...
35
Washer, 1/4 Type A Narrow Flat HUS-332
...
36
Bolt, M6 X 1 X 45 HUS-96742515
