Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

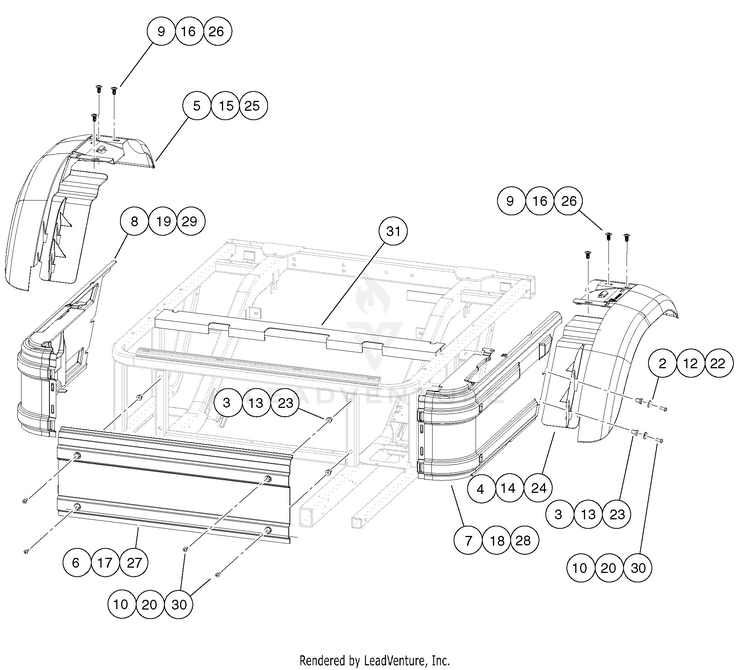

Side Panels and Rear Fenders

...
...
2
Washer, 1/4" Type B Flat HUS-1014306
...
3
Well Nut 1/4-20 HUS-102491701
...
4
Left Rear Fender HUS-102913801
...
5
Right Rear Fender HUS-102913901
...
6
Panel, Front, Kick HUS-102914001
...
7
Panel, Side, Molded, Driver HUS-102914101
...
8
Panel, Side, Molded, Passenger HUS-102914102
...
9
Screw, Tuflok, 10mm HUS-103200501
...
10
Screw, 1/4-20 X 1.0 Truss-Head Machine HUS-8251
...
12
Washer, 1/4" Type B Flat HUS-1014306
...
13
Well Nut 1/4-20 HUS-102491701
...
14
Left Rear Fender HUS-102913801
...
15
Right Rear Fender HUS-102913901
...
16
Screw, Tuflok, 10mm HUS-103200501
...
17
Panel, Front, Kick, Rthwhd HUS-103289001
...
18
Pnl, Side, Mld, Drv, Rthwhd HUS-103289101
...
19
Pnl, Side, Mld, Pass, Rthwhd HUS-103289103
...
20
Screw, 1/4-20 X 1.0 Truss-Head Machine HUS-8251
...
22
Washer, 1/4" Type B Flat HUS-1014306
...
23
Well Nut 1/4-20 HUS-102491701
...
24
Left Rear Fender HUS-102913801
...
25
Right Rear Fender HUS-102913901
...
26
Screw, Tuflok, 10mm HUS-103200501
...
27
Panel, Front, Kick, Moff HUS-103289002
...
28
Pnl, Side, Mld, Drv, Moff HUS-103289102
...
29
Pnl, Side, Mld, Pass, Moff HUS-103289104
...
30
Screw, 1/4-20 X 1.0 Truss-Head Machine HUS-8251
...
31
Closeout, Extrusion HUS-103331201
