Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

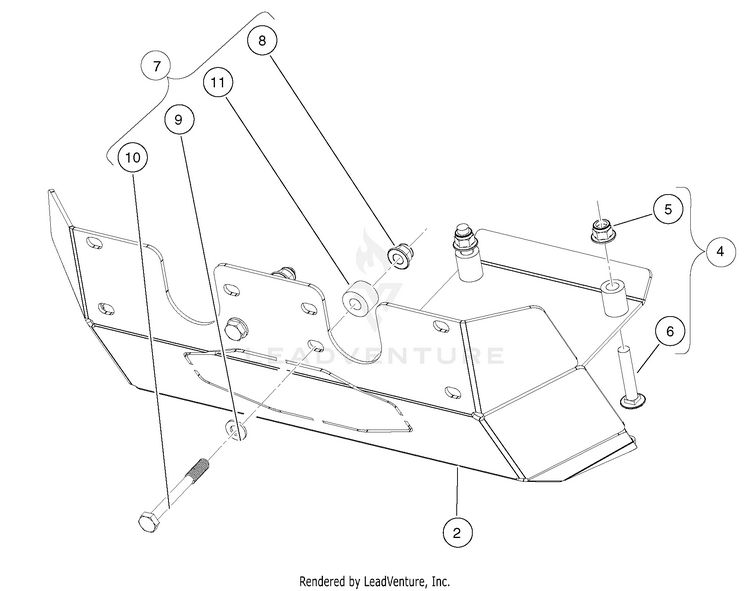

Steel Skid Plate

...
...
2
Skid Plate, Front, Steel HUS-AM1210002
...
3
Instructions, Front Skidplate HUS-AM1211101
...
4
Kit, Hardware, Skidplate, Front, A (includes items 5 and 6) HUS-AM1215701
...
5
Nut Flg M10 X 1.5 Nylon HUS-102670701
...
6
Bolt, Carriage, M10x1.5x55 HUS-AM1210801
...
7
Kit, Hardware, Skidplate, Front, B (includes items 8 through 11) HUS-AM1215801
...
8
Nut Flg M10 X 1.5 Nylon HUS-102670701
...
9
Washer, Hard, M10, Zn-Ni/Blk HUS-102718101
...
10
Bolt, M10 X 1.50 X 90, Loctite HUS-102719301
...
11
Spacer, 17mm Long, Skidplate HUS-AM1211401
