Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

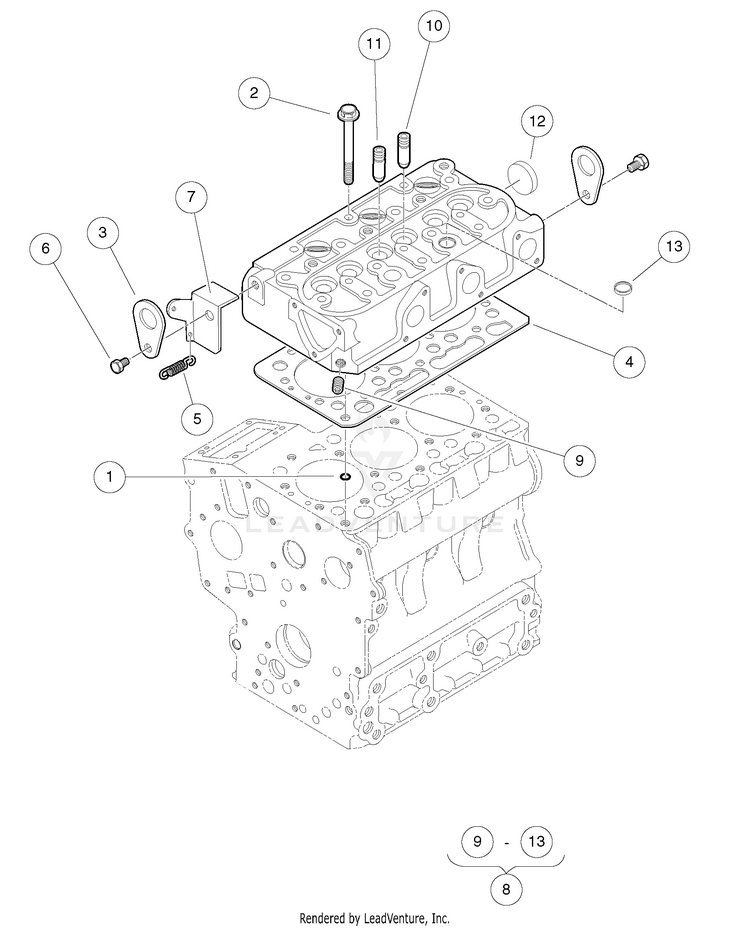

Cylinder Head

...
...
1
O Ring, 8 X 7 HUS-102600301
...
2
Bolt, Cylinder Head HUS-102652801
...
3
Hook, Engine HUS-102653901
...
4
Gasket, Cylinder Head HUS-102654101
...
5
Spring, Start HUS-102701001
...
6
Bolt, Engine Hook HUS-102726701
...
7
Stay, Cylinder Head HUS-102727101
...
8
Head, Cylinder, Complete (includes items 9 through 13) HUS-102798001
...
9
Plug, 3/32" HUS-102600801
...
10
Guide, Exhaust Valve HUS-102653401
...
11
Guide, Inlet Valve HUS-102653501
...
12
Cap, Sealing, Head HUS-102726901
...
13
Cap, Sealing, Head, Top HUS-102727001
Schematic Image Zoomed
