Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

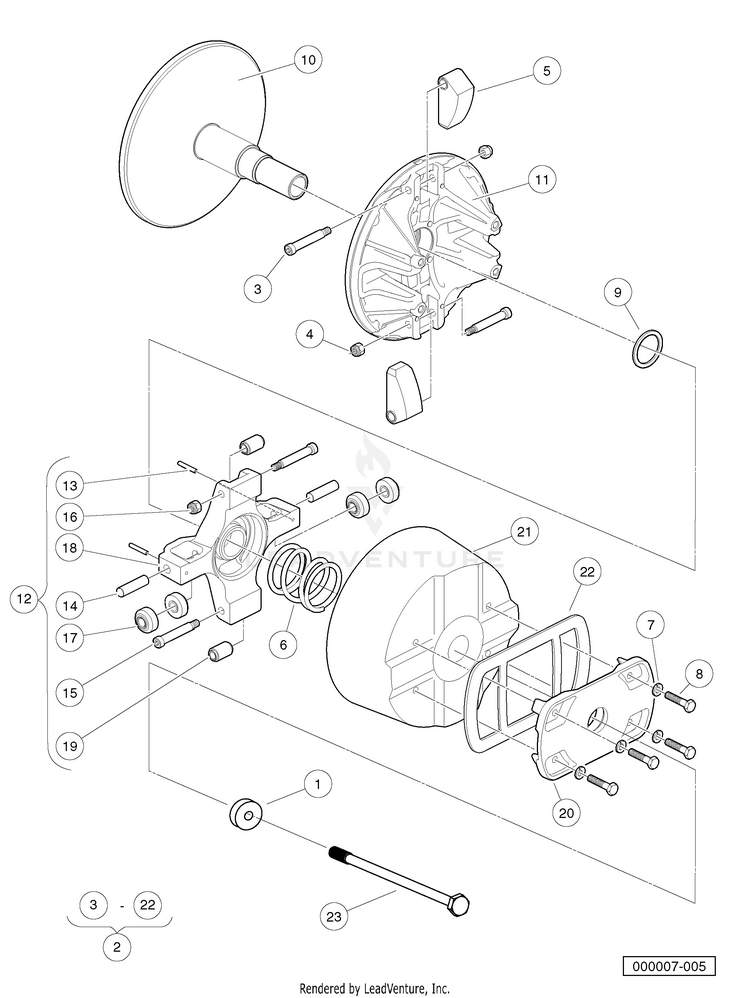

Drive Clutch - Gasoline Vehicles

...
...
1
Washer, Stepped HUS-102385601
...
2
Clutch, 4x4, Gas, W/cover (includes items 3 through 22) HUS-103185401
...
3
Screw, Shlder Hex, .312 X 1.75 HUS-102690501
...
4
Nut, Lock Hex, 1/14-20, Flexlc HUS-102690701
...
5
Sub Assy, Wt Clutch, Gas HUS-102691001
...
6
Spring, Compression, Primary HUS-102691401
...
7
Washer, Lock, H-Spring, 1/4 HUS-102691601
...
8
Screw, Cap, Hex Hd, 1/4 X 1.25 HUS-102691701
...
9
Shim, 1.63 X 1.33 HUS-102691801
...
13
Pin, Spring Slotted,1.25 X 1.0 HUS-102690201
...
14
Pin, Dowel, .375 X 1.50 HUS-102690301
...
15
Screw, Shlder Hex, .312 X 1.75 HUS-102690501
...
16
Nut, Lock Hex, 1/14-20, Flexlc HUS-102690701
...
17
Roller, Torque, Gas HUS-102691901
...
19
Sub Assy, Roller Weight HUS-102839401
...
21
Cover, Clutch, 4x4 HUS-103185801
...
22
Gasket, Cover, Clutch, 4x4 HUS-103185901
...
23
Bolt, M8 X 1.25 X 200, Loctite HUS-103201501
