Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

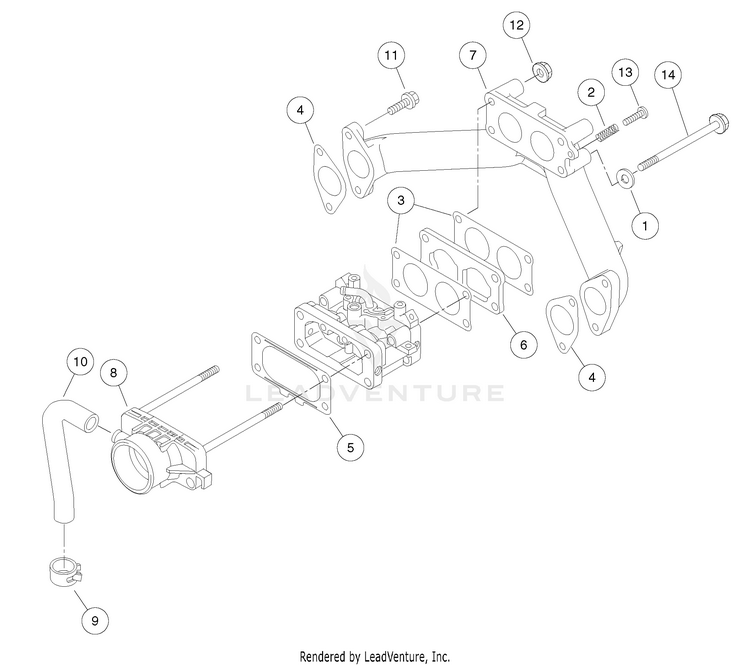

Carburetor Installation - Kawasaki Gasoline Vehicles

...
...
1
Washer, M6 Flat HUS-1016513
...
2
Spring, Fh HUS-103002801
...
3
Gasket, Carburetor, Fh HUS-103003801
...
4
Gasket, Manifold, Fh HUS-103003901
...
5
Gasket, Air Filter, Fh HUS-103004201
...
6
Insulator, Manifold, Fh HUS-103005001
...
7
Manifold, Intake, Fh HUS-103005601
...
8
Pipe, Intake Adapter, Fh HUS-103297101
...
9
Clamp, Crankcase Vent, Fh HUS-103297201
...
10
Tube, Crankcase Vent, Fh HUS-103297301
...
11
Bolt, Flanged, M6 X 20, Kaw HUS-103298501
...
12
Nut, Carburetor, M6 HUS-103320201
...
13
Screw, Carburetor, M4 X 20 HUS-103320301
...
14
Bolt, Flg, Carburetor, M6x105 HUS-103320401
