Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

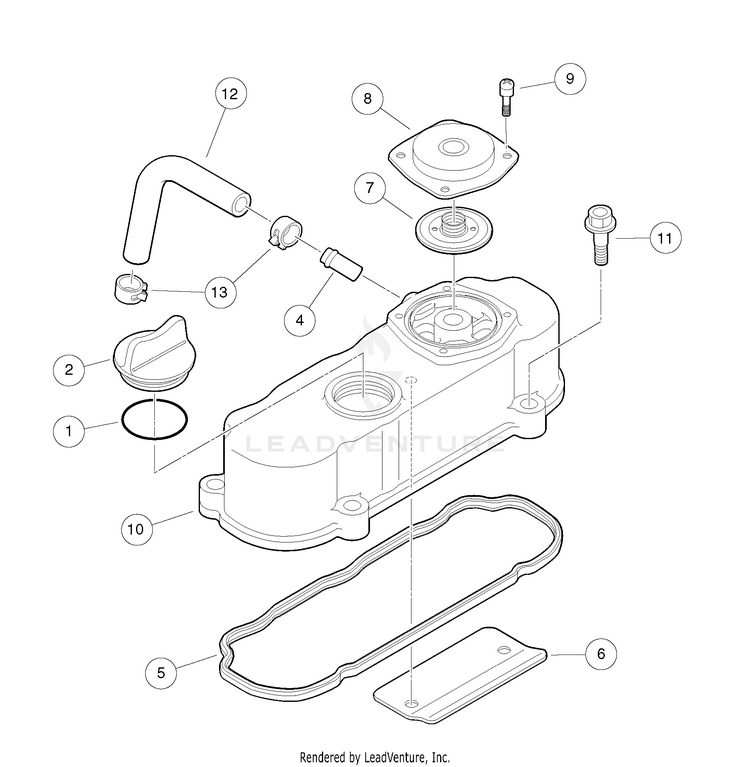

Head Cover

...
...
1
O Ring, 30 X 36 HUS-102644001
...
2
Plug, Oil Filler HUS-102644101
...
3
Assembly, Cylinder Head Cover (includes items 4 through 10) HUS-102798401
...
4
Pipe, Water Return, D722 HUS-102633301
...
5
Gasket, Cylinder Head Cover HUS-102798501
...
6
Shield, Breather HUS-102798601
...
7
Valve, Breather HUS-102799001
...
8
Cover, Breather HUS-102799101
...
9
Screw, Breather HUS-102799201
...
11
Bolt, Cylinder Head Cover HUS-102798701
...
12
Tube, Breather HUS-102798801
...
13
Clamp, Breather Tube HUS-102798901
