Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

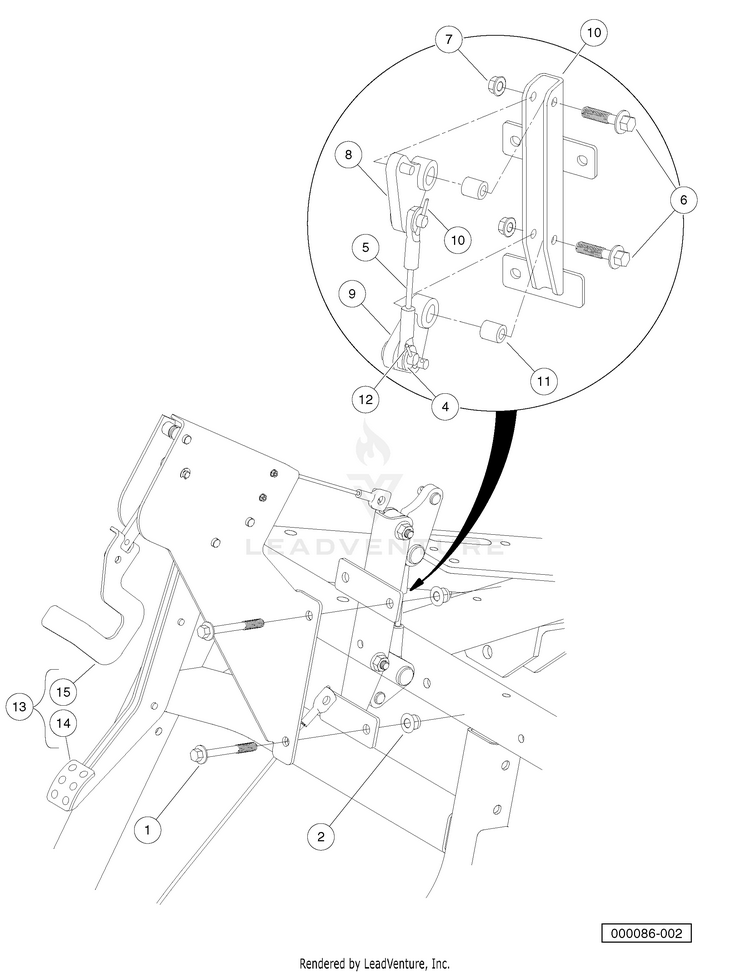

Park Brake Pedal Assembly

...
...
1
Bolt Flanged Head, M8 X 1.25 X 65 HUS-102618301
...
2
Lock Nut, Flg M8 X 1.25 Nylon HUS-102618601
...
3
Asm, Sub, Bracket, Park Brake (includes items 4 through 12) HUS-102751501
...
4
Washer, Flat, 3/8, Blk Fin HUS-102323501
...
5
Cable, Crank, Bell HUS-102716001
...
6
Bolt Flg, M8x1.25 X 35, Gr10.9 HUS-102741501
...
7
Nut Flg M8 X 1.25 Gr 10 HUS-102741601
...
8
Asm, Bellcrank, Upper HUS-102751301
...
9
Asm, Bellcrank, Lower HUS-102751401
...
10
Brkt, Bellcrank, Prk Brk, Awd HUS-103305001
...
11
Spacer, Pivot, Park Brk, Awd HUS-103305101
...
12
Cotter Pin, 3/32 x 1 HUS-1035
...
13
Asm, Pedal, Brake, Hard (includes items 14 and 15) HUS-102892401
...
15
Handle, Release, Park Brake HUS-102896601
Schematic Image Zoomed
