Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

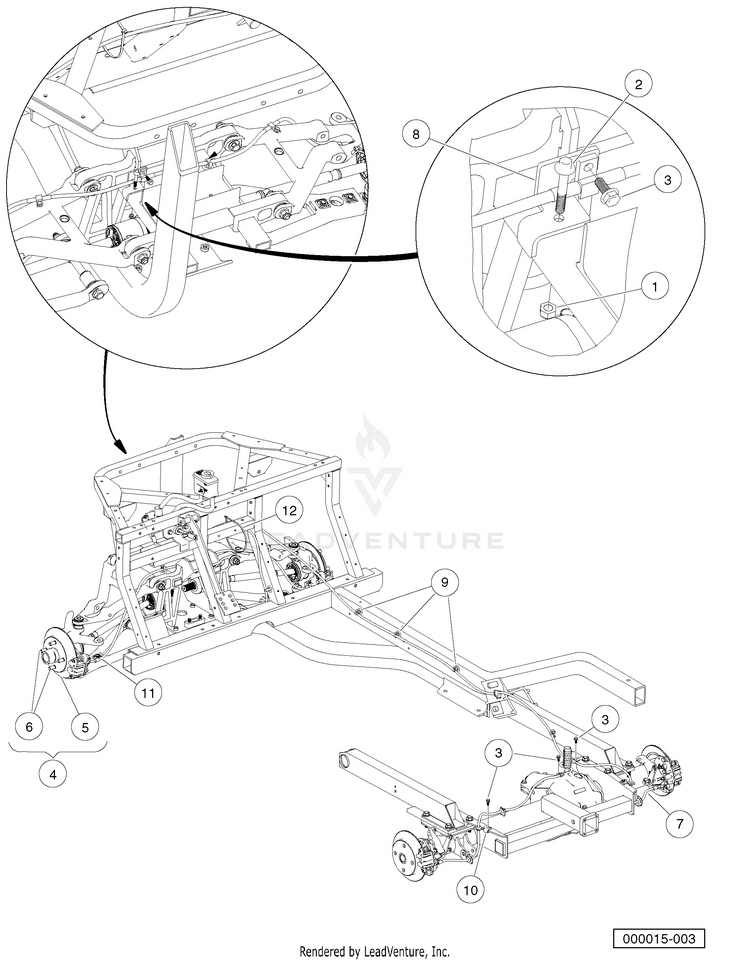

Hydraulic Brake Lines and Clips

...
...
1
Locknut, M6-1.00 Nylon Insert HUS-101887601
...
2
Bolt, Flanged Head, M6x1.0x40 HUS-102296140
...
3
Screw, M6 X 16 Tt Hx Fl Hd HUS-102296716
...
4
Assy, Rotor, Brake, Front, Wt (includes items 5 and 6) HUS-102376603
...
5
Rotor, Brake, Front, Wt HUS-102364103
...
6
Stud, Wheel Lug HUS-102475801
...
7
Assembly, Brake Line, Rear HUS-102407801
...
8
Bracket, Tee, Brakeline HUS-102474301
...
9
Clip, Brake Line HUS-102475701
...
10
Bracket, Line, Hydraulic HUS-102689001
...
11
Brakeline, Front, Assembly HUS-103174301
...
12
Tie Wrap, 11" Nylon HUS-8639
