Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

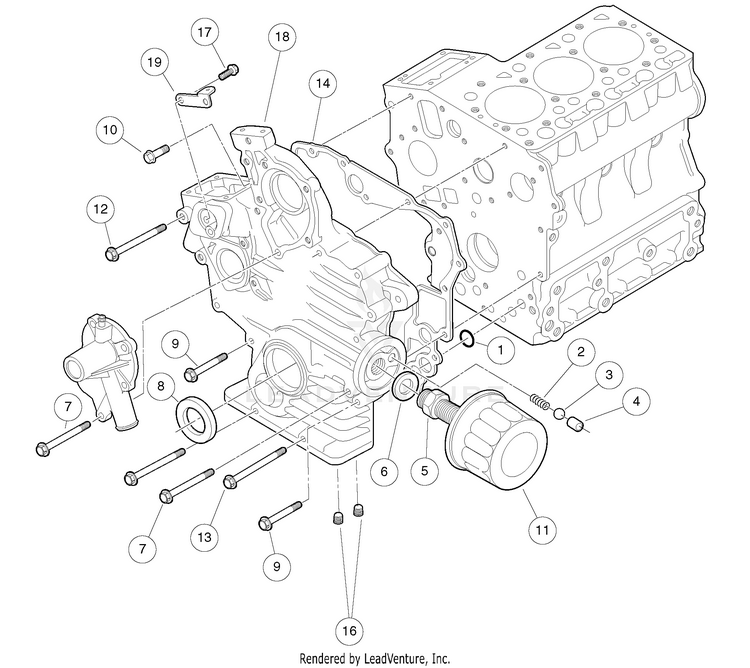

Gear Case

...
...
1
O Ring, 18 X 13 HUS-102601801
...
2
Spring, Valve HUS-102601901
...
3
Ball, Valve HUS-102602001
...
4
Seat, Valve HUS-102602101
...
5
Joint, Pipe HUS-102602301
...
6
Washer, Plain, Special HUS-102602401
...
7
Bolt, M6 X 1 X 60 HUS-102602601
...
8
Seal, Oil HUS-102602701
...
9
Bolt, D722, Front Case HUS-102602801
...
10
Bolt, D722 Intake Manfld Lower HUS-102654301
...
11
Filter, Engine Oil, D722 HUS-102703301
...
12
Bolt, Gearcase, Top HUS-102727401
...
13
Bolt, Gearcase, Lower HUS-102727501
...
14
Gasket, Gearcase, D722 HUS-102729301
...
15
Case, Gear (includes items 16 through 19) HUS-102798101
...
16
Plug, 1/4" HUS-102601001
...
17
Screw, Breather HUS-102727601
...
19
Stay, Spring HUS-102798201
