Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

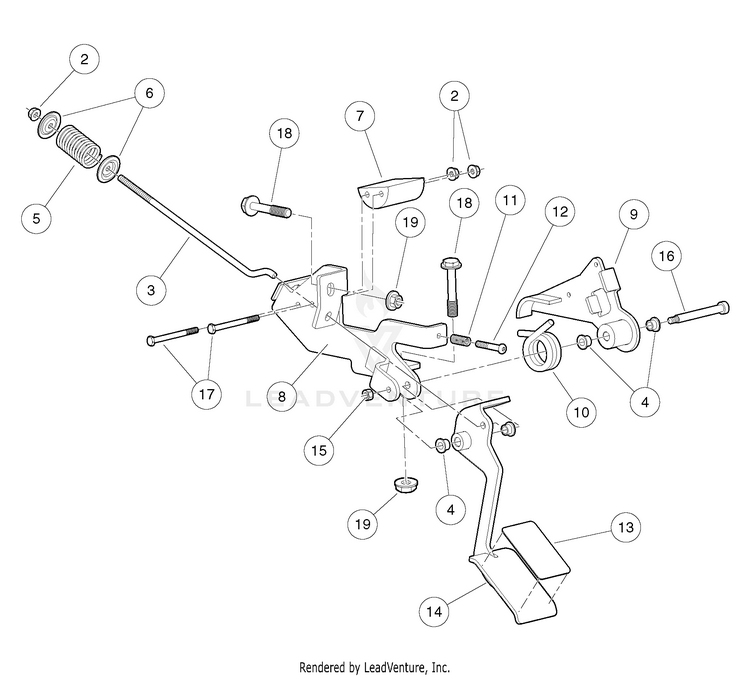

Accelerator Pedal Assembly - Style B

...
...
1
Asm, Pedal, Accelerator (includes items 2 through 17) HUS-102489901
...
2
Nut-m6x1.0 Flng All Mtl Lock HUS-102296401
...
4
Bushing, Greaseless HUS-102442901
...
15
Nut M6x1 Mech Def Center HUS-102618101
...
16
Bolt, Shoulder, M8 X 70, Hc HUS-103273101
...
17
Bolt, M6 X 1 X 70 HUS-96706825
...
18
Bolt Flanged Head, M8 X 1.25 X 65 HUS-102618301
...
19
Lock Nut, Flg M8 X 1.25 Nylon HUS-102618601
