Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

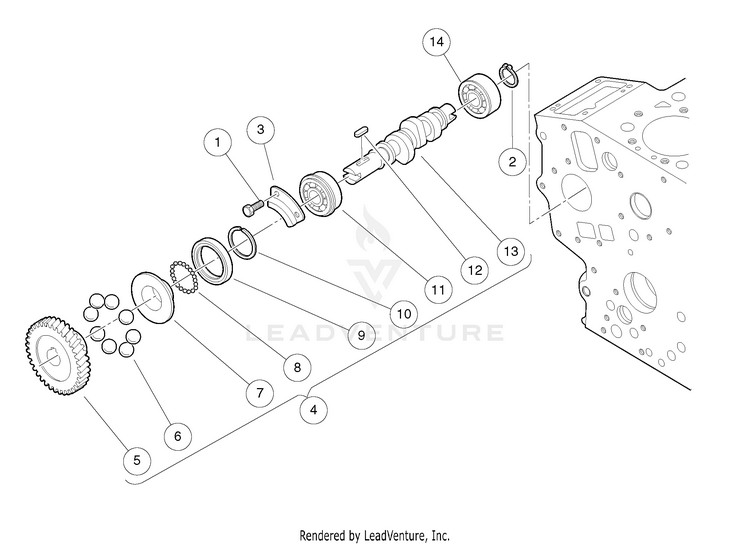

Shaft

...
...
1
Bolt, D722, Cam End HUS-102604201
...
2
Circlip, External HUS-102604701
...
3
Stopper, Fuel, C/shaft HUS-102604801
...
4
Assy, Fuel Camshaft (includes items 5 through 13) HUS-102728401
...
5
Gear, Injection Pump HUS-102603601
...
6
Ball, Injection Pump HUS-102603701
...
7
Sleeve, Governor HUS-102603801
...
8
Ball, Governor HUS-102603901
...
9
Case, Governor Ball HUS-102604001
...
10
Circlip HUS-102604101
...
11
Bearing, Ball HUS-102604301
...
12
Key, Feather, Short Camshaft HUS-102604401
...
13
Camshaft, Fuel, Short HUS-102604501
...
14
Bearing, Ball HUS-102728501
