Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

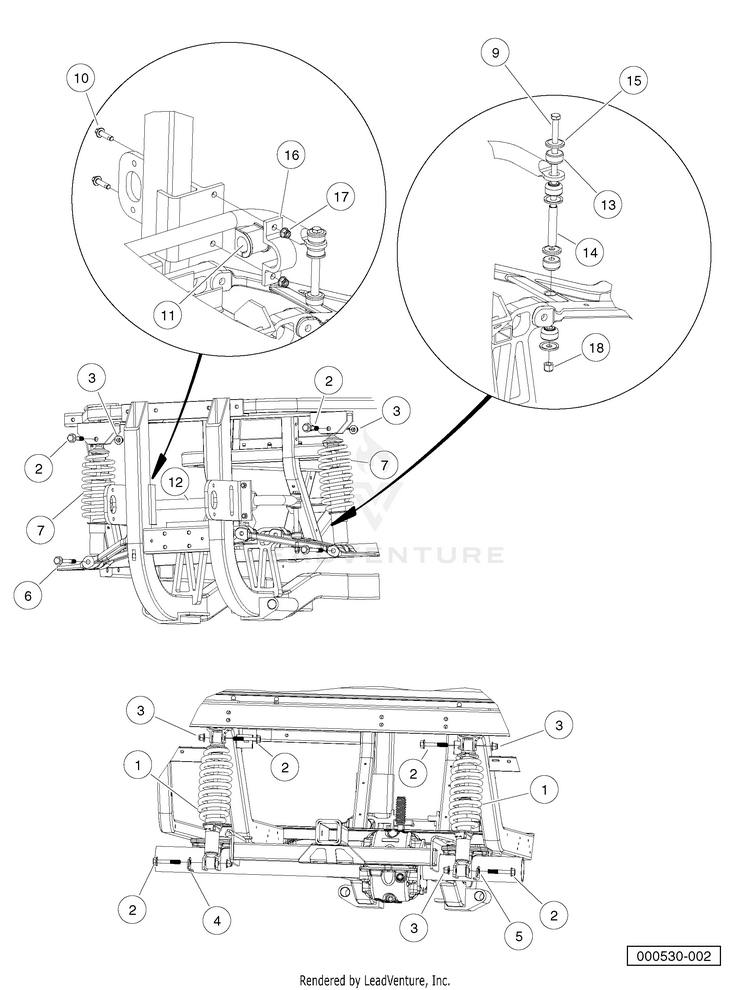

Shock Absorbers-High Capacity

...
...
1
Shock, Coil Over, Rear HD HUS-102365602
...
2
Bolt, Flange Head, M12 X 1.75 X 70 HUS-102616301
...
3
Nut Flg, M12x1.75, Nylon Gr 10 HUS-102620501
...
4
Brkt, Line, Hyd, Shk Mnt, Drv HUS-102689101
...
5
Brkt, Line, Hyd, Shk Mnt, Pass HUS-102689102
...
6
Bolt Flg, M12x1.75x100, Patch HUS-102788701
...
7
Asm, Coil & Shock, Frt HUS-102792101
...
9
Screw, 3/8-16 X 7.00 Hex Cap HUS-1016183
...
10
Bolt, Flange Head, M8 X 30.0 HUS-102298130
...
11
Bushing, Anti-Sway Bar, 1-1/8 HUS-102446601
...
12
Bar, Sway, Formed HUS-102464601
...
13
Bushing, Link HUS-102470101
...
14
Sleeve, Link HUS-102470501
...
15
Washer, Cup, Bushing HUS-102470601
...
16
Bracket, Anti-Sway Bar HUS-102495001
...
17
Lock Nut, Flg M8 X 1.25 Nylon HUS-102618601
...
18
Locknut, 3/8-16 Hex HUS-8754
