Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

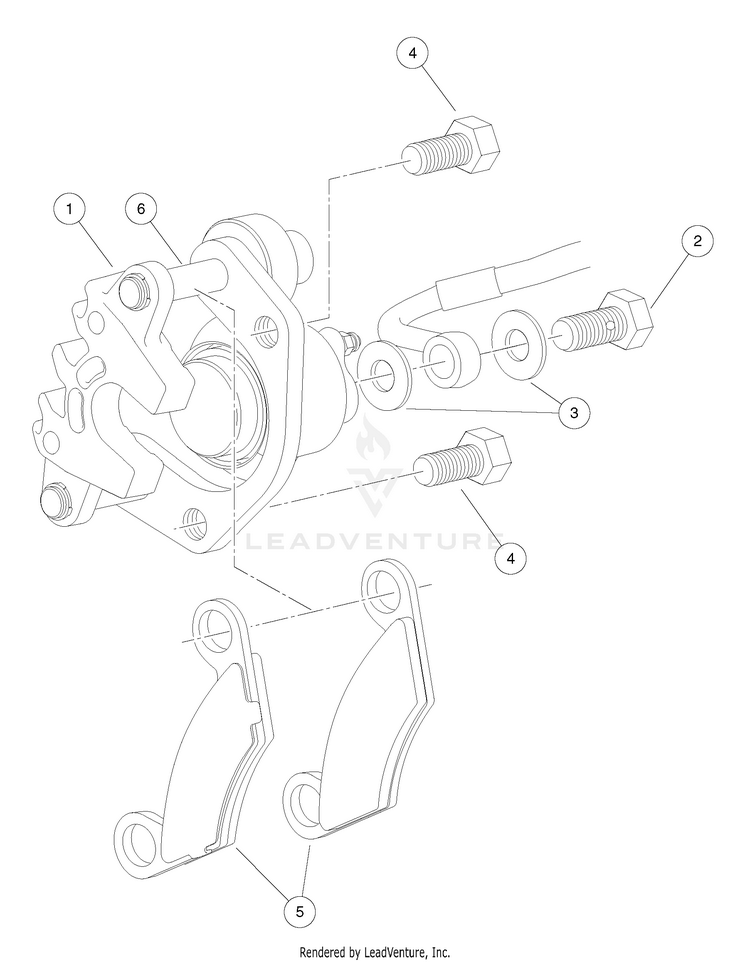

Front Brake Assembly

...
...
1
Brake Caliper, Front, with Brake Pads HUS-102367601
...
2
Bolt, Banjo, M10x1x19 HUS-102488001
...
3
Washer, Copper, M10 Crush HUS-102491601
...
4
Bolt Flange Head, 3/8-24x.750 with Loctite HUS-102493301
...
5
Service Kit, Brake Pad (4 Pads) HUS-102714001
...
6
Pin, Slide, 7/16 HUS-103418801
