Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

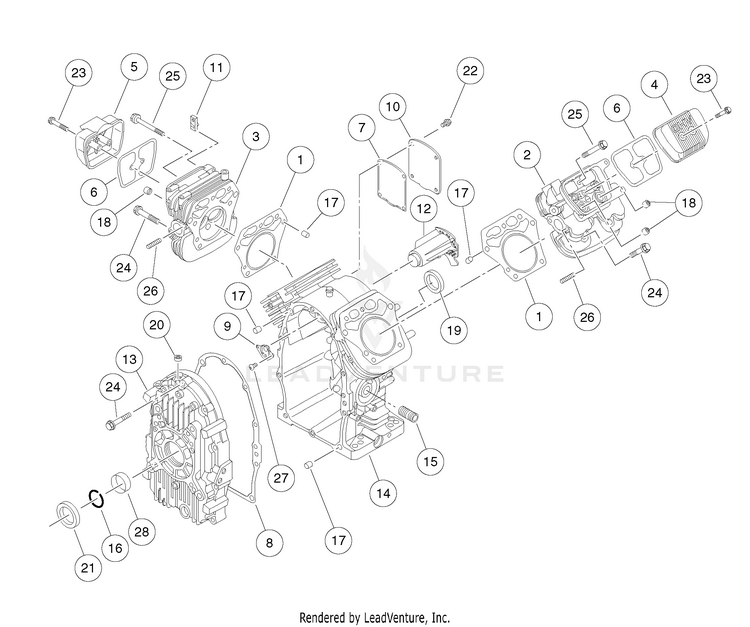

Cylinder Head and Crankcase

...
...
1
Gasket, Head, Cyl, Fh HUS-102990101
...
2
Head, Cyld 1, Fh HUS-102990201
...
3
Head, Cyld 2, Fh HUS-102990301
...
4
Cover, Rocker, Cyld 1, Fh HUS-102990401
...
5
Cover, Rocker, Cyld 2, Fh HUS-102990501
...
6
Gasket, Rocker, Cover, FH HUS-102990601
...
7
Gasket, Breather, Fh HUS-102990701
...
8
Gasket, Cover, Crank, Fh HUS-102990801
...
9
Valve, Assy, Reed, Fh HUS-102990901
...
10
Cover, Crkcase, Comp, Fh HUS-102991101
...
11
Pipe, Head, Comp, Clyd, Fh HUS-102991201
...
12
Pipe, Crkcase, Comp, Fh HUS-102991301
...
13
Cover, Crankcase, Fh HUS-102991401
...
14
Crankcase, Comp, Fh HUS-102991501
...
15
Nipple, Oil Filter, Fh HUS-102991601
...
16
Ring, Snap, Fh HUS-102991801
...
17
Pin, Head, Fh HUS-102991901
...
18
Seal, Oil, Valve, Fh HUS-102992001
...
19
Seal, Oil, Crank, Rear, Fh HUS-102992101
...
20
Seal, Oil, Governor, Fh HUS-102992201
...
21
Seal, Oil, Crank, Front, Fh HUS-102992301
...
22
Bolt, Flg, M6 X 1.0 X 12 HUS-102992401
...
23
Bolt, Flg, M6 X 1.0 X 40 HUS-102992601
...
24
Bolt, Flg, M8 X 1.25 X 50 HUS-102992701
...
25
Bolt, Flg, M8 X 1.25 X 75 HUS-102992801
...
26
Stud, M8 X 1.25, Exhaust, Fh HUS-102992901
...
27
Screw, Pan, Governor, Fh HUS-103298601
...
28
Bushing, Main, Fh HUS-103298901
