Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

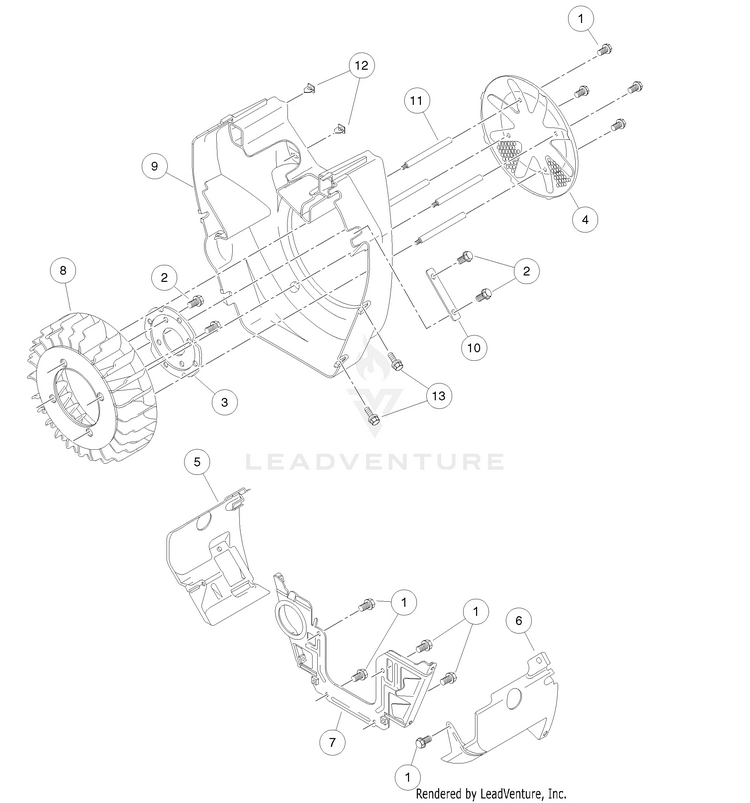

Shrouds and Brackets

...
...
1
Bolt, Flg, M6 X 1.0 X 12 HUS-102992401
...
2
Bolt, Flg, M6 X 1.0 X 16 HUS-102992501
...
3
Plate, Housing, Fan, Fh HUS-102998601
...
4
Screen, Fan, Fh HUS-102998701
...
5
Shroud, Engine, Rh, Fh HUS-102999101
...
6
Shroud, Engine, Lh, Fh HUS-102999201
...
7
Shroud, Engine, Front, Fh HUS-102999301
...
8
Fan, Cooling, Fh HUS-102999501
...
9
Housing, Engine, Fh HUS-102999601
...
10
Washer, Housing, Fan, Fh HUS-103000001
...
11
Stud, Fan Screen, Fh HUS-103299301
...
12
Nut, Press In, Front Cover, Fh HUS-103299401
...
13
Bolt, Oil Pickup, Fh HUS-103300301
