product name

Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

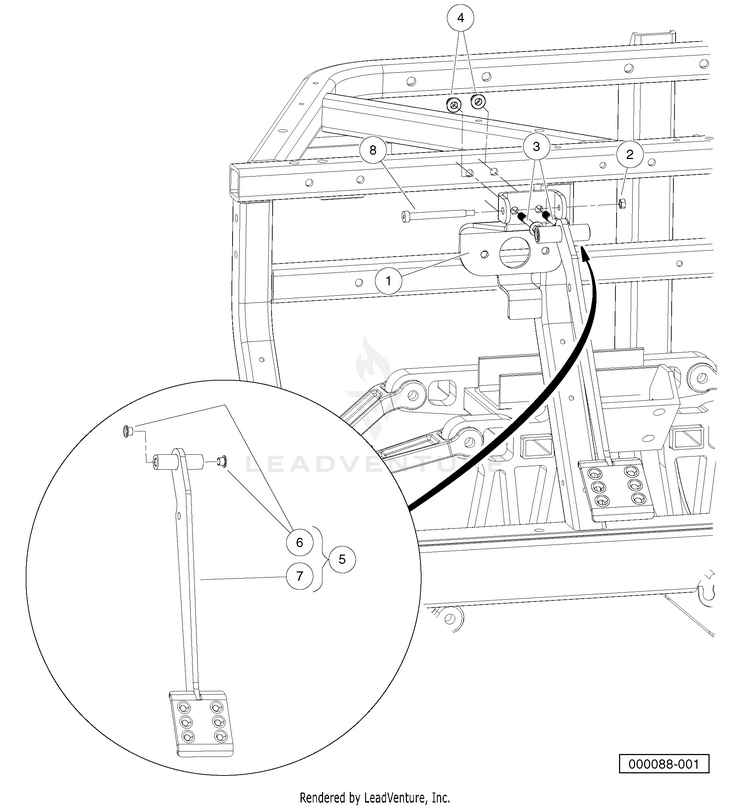

Brake Pedal Assembly

...
...
1
Bracket, Pedal, Brake HUS-102380601
...
2
Nut M6x1 Mech Def Center HUS-102618101
...
3
Bolt Flanged Head, M8 X 1.25 X 65 HUS-102618301
...
4
Lock Nut, Flg M8 X 1.25 Nylon HUS-102618601
...
6
Bushing, Greaseless HUS-102442901
...
7
Weldment, Pedal, Brake, Hung HUS-102626201
...
8
Bolt, Shoulder, M8 X 70, Hc HUS-103273101
Schematic Image Zoomed
