Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

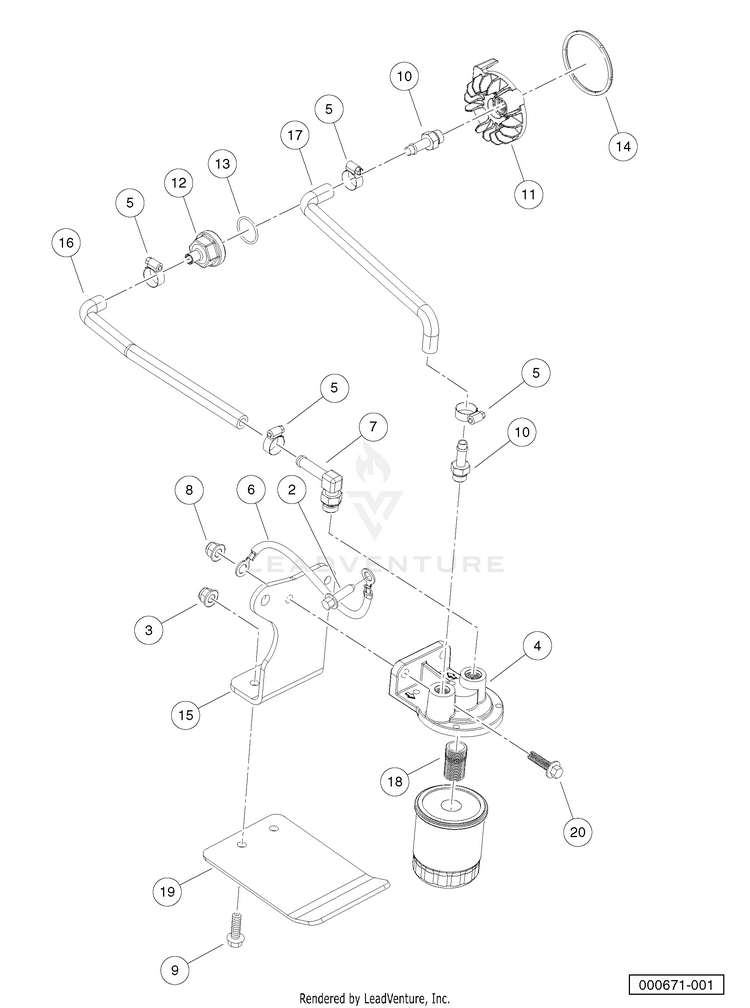

Oil Filter Adapter

...
...
2
Screw, M8X1.25X30, Hex HUS-102289001
...
3
Nut,m8,all Metal Lock HUS-102298401
...
4
Bracket, Oil Filter Mount HUS-102371401
...
5
Clamp, Hose HUS-102443601
...
6
Wire Asm, #6 Blk, Awd, 325 HUS-102448501
...
7
Adapter, 90, 3/8 Tube HUS-102457501
...
8
Lock Nut, Flg M8 X 1.25 Nylon HUS-102618601
...
9
Bolt, M8 X 1.25 X 40 with Loctite HUS-102621301
...
10
Adapter, 5/16 Hose HUS-102722001
...
11
Adapter, Special, Oil Filter HUS-102958301
...
12
Nut, Special, Hose Adapter HUS-102958401
...
13
O-ring, 23.52 X 1.78mm HUS-102958501
...
14
O-ring, Oil Filter Adapter HUS-102958601
...
15
Bracket, Oil Filter, Fh680d HUS-103197201
...
16
Hose, Formed, Oil, 5/16" HUS-103240601
...
17
Hose, Formed, Oil, 5/16", Ret HUS-103246901
...
18
Nipple, 3/4-16 X M20 X 1.5-6g HUS-103276201
...
19
Guard, Oil Filter, Fh680d HUS-103326401
...
20
Bolt, M8 X 1.25 X 30 HUS-96705587
