Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

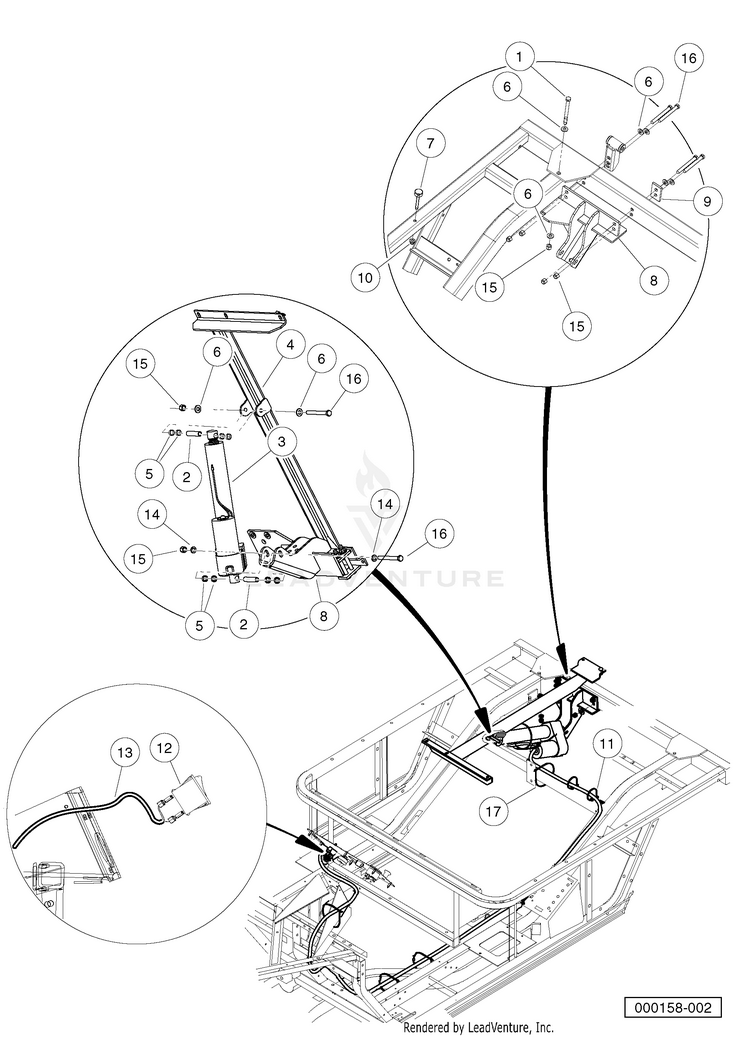

Electric Bed Lift

...
...
1
Bolt, 3/8-16 X 4.25 Hex Head HUS-1010200
...
2
Bushing Long HUS-1016603
...
3
Actuator Assembly, Electric HUS-1017162
...
4
Actuator Adapter HUS-1017167
...
5
Body Spacer HUS-1017774
...
6
Washer, 3/8 Type B Hard Flat HUS-102066001
...
7
Bumper, Bed, Mtg, Front HUS-102426601
...
8
Weldment, Bracket, Actuator HUS-102465701
...
9
Plate, Back HUS-102614101
...
10
Lock Nut, Flg M8 X 1.25 Nylon HUS-102618601
...
11
Tie Wrap, 8.00" With Mount HUS-102629001
...
12
Switch, Rocker, Spring Return, Bed Lift HUS-102882501
...
13
Harness, AWD Bedlift HUS-103227001
...
14
Washer, Lock, Hel Sp 3/8 Reg HUS-357
...
15
Locknut, 3/8-16 Hex HUS-8754
...
16
Screw, 3/8-16 X 3.375 Hex Cap HUS-8755
...
17
Tie Wrap, 8" Nylon HUS-8990
