Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

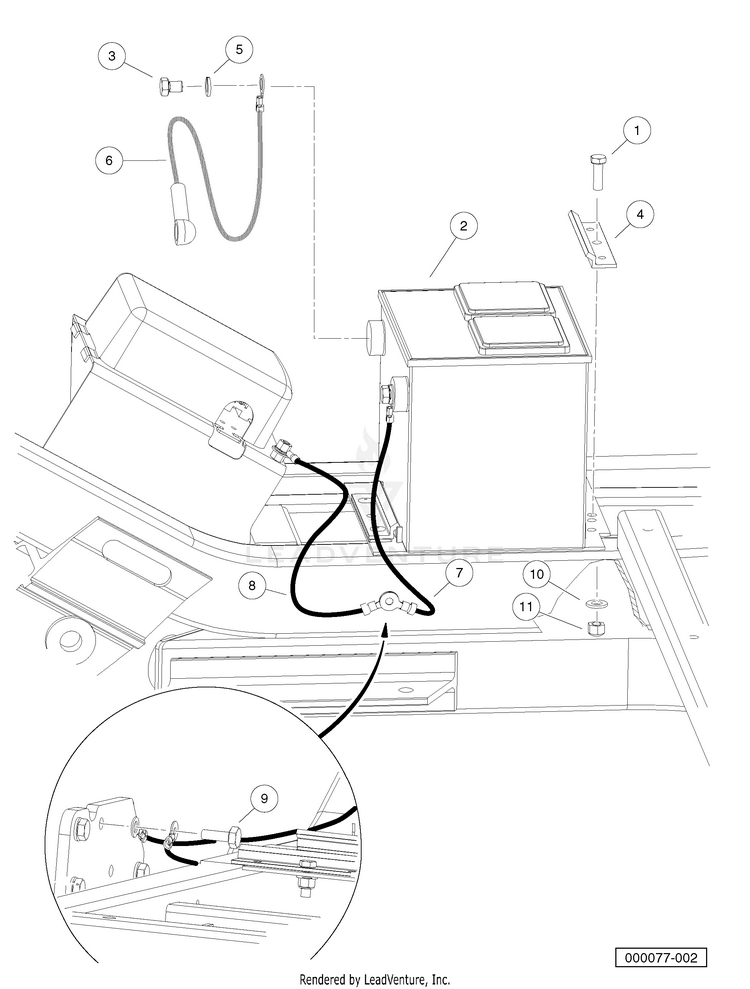

Battery-Diesel Vehicles

...
...
1
Screw, 5/16-18 X 1.00 Hex Cap HUS-1010934
...
2
Battery, 12-Volt HUS-1012328
...
3
Screw, 3/8-16 X 0.50 Stainless Steel Hex-Head HUS-1014375
...
4
Clamp, Battery HUS-101898001
...
5
Lockwasher, 3/8 Stainless Stl HUS-102355301
...
6
Asm, #6 Red Wire HUS-102442201
...
7
Wire Asm, #6 Blk, Awd, 350 HUS-102448401
...
8
Wire Asm, #6 Blk, Awd, 325 HUS-102448501
...
9
Bolt, M10 X 1.25 X 25 Loctite HUS-102498201
...
10
Washer, 5/16 Type A Flat HUS-1241
...
11
Locknut, 5/16-18 Nylon Insert HUS-7473
