product name

Husqvarna HUV 4421 GXP (2009) Utility Vehicle

Model: HUV 4421 GXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

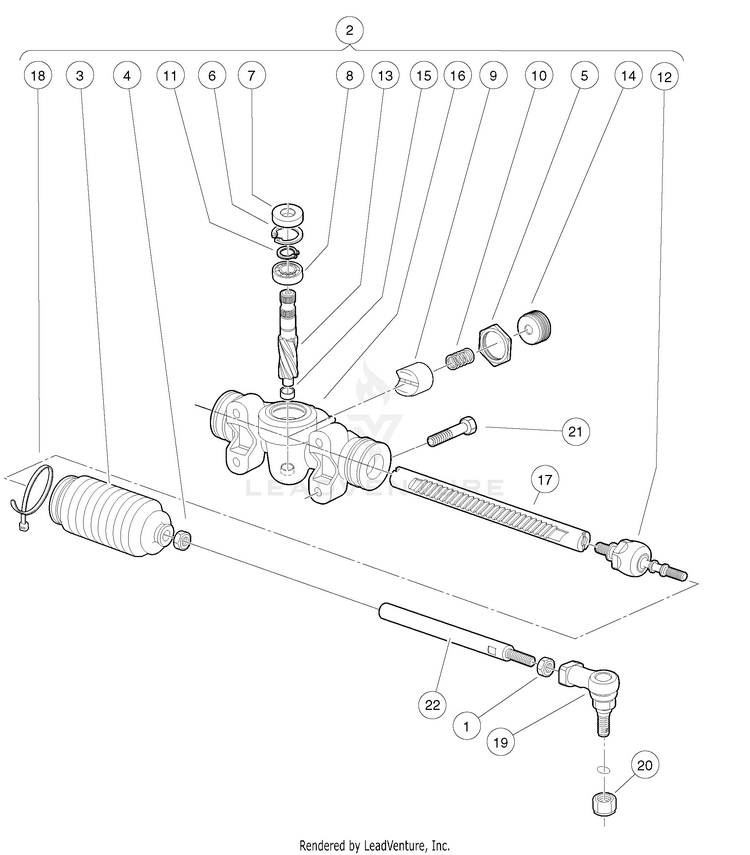

Steering Gear Assembly

...
...
1
Nut, 12mm Hex HUS-1013042
...
2
Steering Rack (includes items 3 through 18) HUS-102010102
...
3
Bellows, Long HUS-1013035
...
4
Nut, 12mm Hex HUS-1013042
...
5
Rack Screw Locknut HUS-1013044
...
6
Snap Ring HUS-1013051
...
7
Seal, Steering Pinion Dust HUS-1013052
...
8
Bearing, Ball HUS-101879401
...
9
Support Yoke HUS-101879701
...
10
Rack Guide Pressure Spring HUS-101879801
...
11
Ring, Stop, C-Type HUS-101879901
...
12
Inner Ball Joint Asm HUS-101880201
...
18
Tie Wrap, 8" Nylon HUS-8990
...
19
End, Tie Rod M12 X 1.25 HUS-102022601
...
20
Locknut, M12-1.25 Nylon HUS-102022901
...
21
Bolt, Flange Head, M10x 1.5 X 40 with Loctite HUS-102687801
...
22
Link, Drag, Wt HUS-102816801
Schematic Image Zoomed
