Husqvarna HUV 4421 GXP (2008-01) Utility Vehicle

Model: HUV 4421 GXP (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

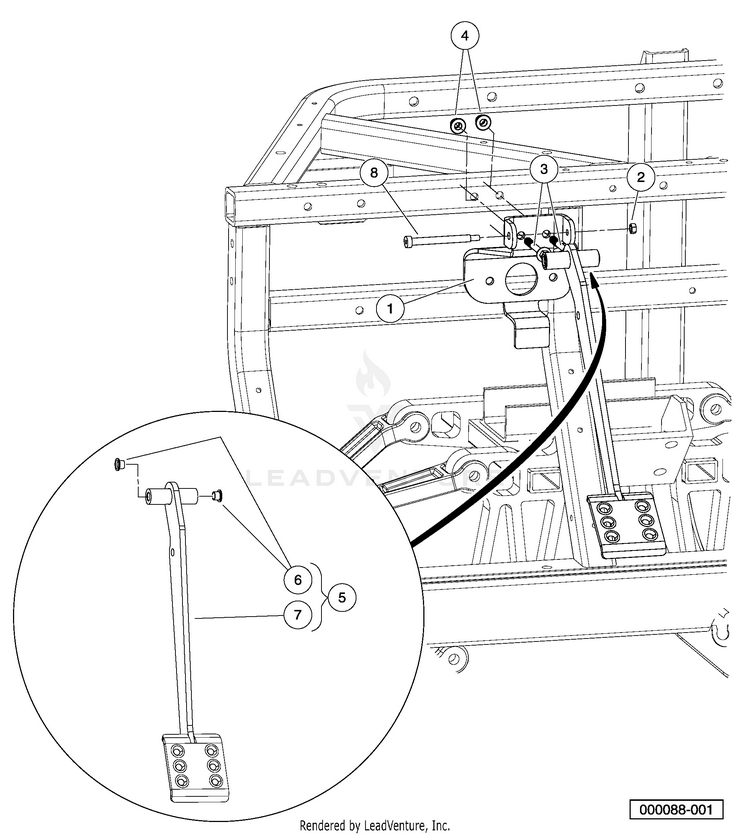

Brake Pedal Assembly

...
...
1
BRACKET, PEDAL, BRAKE HUS-603000935
...
2
NUT M6X1 MECH DEF CENTER HUS-603001305
...
3
BOLT FLG, M8X1.25X65 HUS-603001306
...
4
LOCK NUT, FLG M8 X 1.25 NYLON HUS-603001308
...
6
BUSHING, GREASELESS HUS-603001055
...
7
WELDMENT, PEDAL, BRAKE, HUNG HUS-603001322
...
8
BOLT, SHOULDER, M8 X 70, HC HUS-603003840
Schematic Image Zoomed
