Husqvarna HUV 4421 GXP (2008-01) Utility Vehicle

Model: HUV 4421 GXP (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

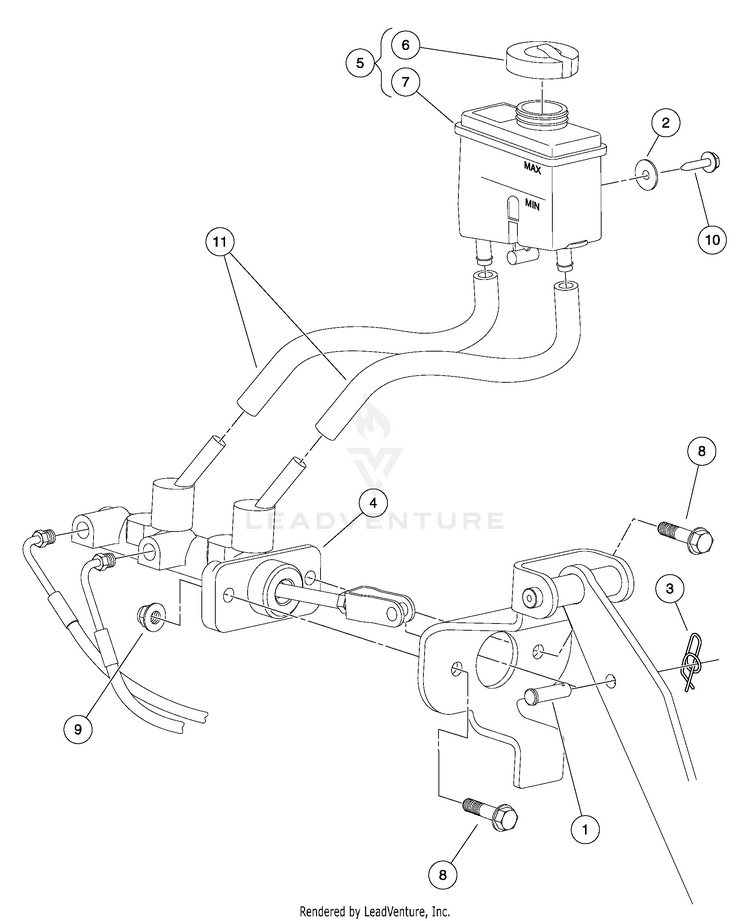

Master Cylinder With Remote Reservoir

...
...
1
CLEVIS PIN, 5/16 X 1 HUS-603000454
...
2
WASHER HUS-603000222
...
3
PIN, RUE HUS-603000798
...
4
CYLINDR, MASTER, TANDEM HUS-603000947
...
5
ASM, RESERVOIR, REMOTE, MC (includes items 6 and 7) HUS-603000948
...
6
FILLER CAP ASM HUS-603000759
...
8
BOLT FLG, M8X1.25X35 HUS-603001307
...
9
LOCK NUT, FLG M8 X 1.25 NYLON HUS-603001308
...
10
SCREW, #10X3.50 AB THD, HEX HD HUS-531308384
...
11
HOSE, RESERVOIR, BRAKE FLUID HUS-603003519
