Husqvarna HUV 4421 GXP (2008-01) Utility Vehicle

Model: HUV 4421 GXP (2008-01)

Back To Assemblies

Save Part Not Listed?
product name

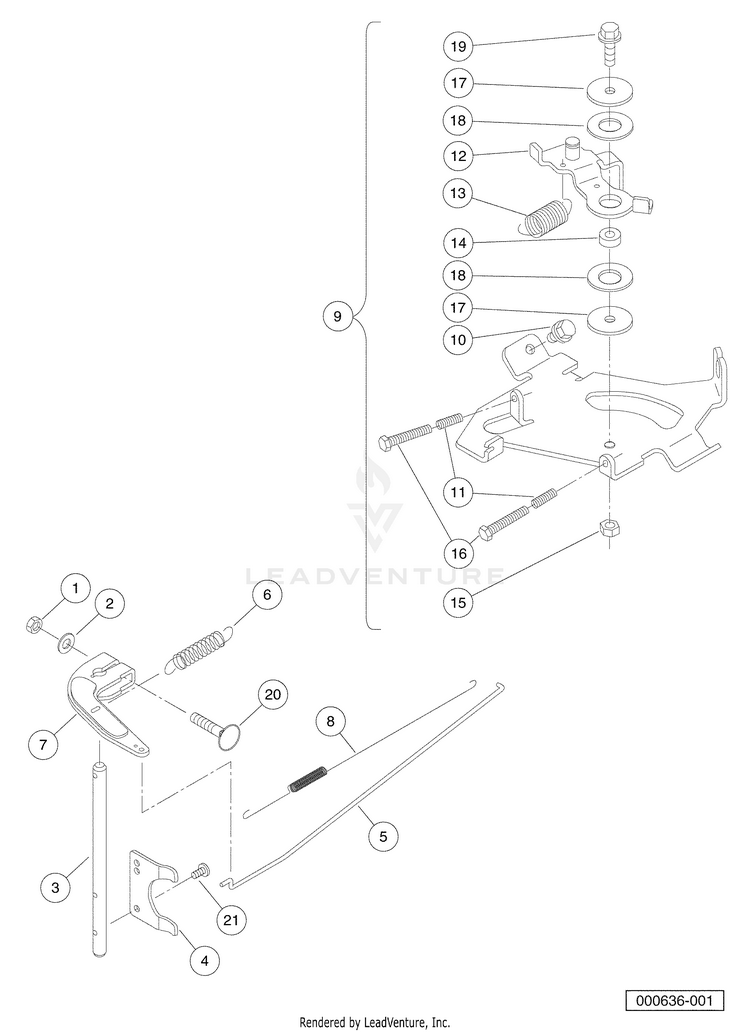

Governor Arm And Springs

...
...
1
NUT -6MM- HUS-603004410
...
2
WASHER, M6 FLAT HUS-603000329
...
3
SHAFT, GOVERNOR, FH HUS-603003860
...
4
PLATE, GOVERNOR, FH HUS-603003859
...
5
LINK, ARM, GOVERNOR, FH HUS-603003858
...
6
SPRING, GOVERNOR, FH HUS-603003857
...
7
ARM, GOVERNOR, SHAFT , FH HUS-603003856
...
8
SPRING, ARM, GOVERNOR, FH HUS-603003854
...
9
PANEL, CONTROL, COMPLETE, FH (includes items 10 through 19) HUS-603003826
...
10
BOLT, FLG, M6 X 1.0 X 12 HUS-603003928
...
11
SPRING, FH HUS-603003855
...
12
LEVER, GOVERNOR, CONTROL, FH HUS-603003829
...
13
SPRING, GOVERNOR RETURN, FH HUS-603003828
...
14
COLLAR, GOVERNOR, FH HUS-603003827
...
15
NUT, GOVERNOR, FH HUS-603003825
...
16
BOLT, SPEED CONTROL, FH HUS-603003824
...
17
WASHER, GOVERNOR, LOWER, FH HUS-603003822
...
18
WASHER, GOVERNOR, MIDDLE, FH HUS-603003821
...
19
BOLT, FLANGED, M6 X 20, KAW HUS-603003820
...
20
BOLT M6X35 KAWASAKI HUS-603003823
...
21
SCREW, PAN, GOVERNOR, FH HUS-603003819
