Husqvarna HUV 4421 GXP (2007-01) Utility Vehicle

Model: HUV 4421 GXP (2007-01)

Back To Assemblies

Save Part Not Listed?
product name

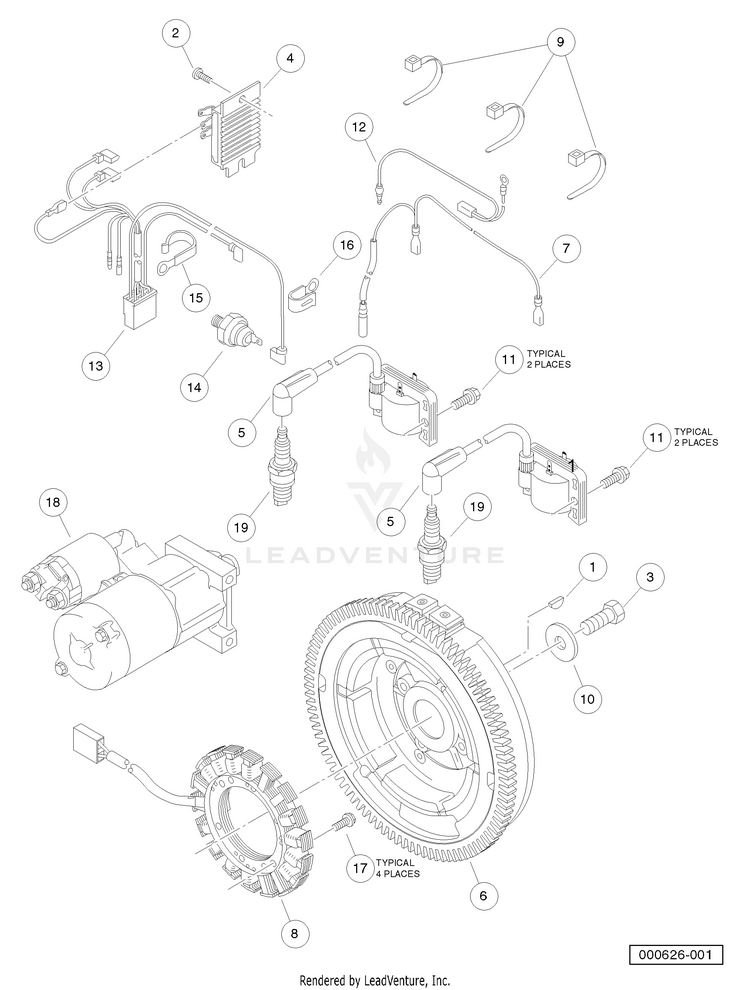

Ignition Components and Flywheel (Kawasaki FH680D Gasoline Engine)

...
...
1
KEY HUS-603003964
...
2
SCREW HUS-603000339
...
3
BOLT, FLG, M12 X 1.25 X 30 HUS-603003914
...
4
REGULATOR, VOLTAGE, FH HUS-603003867
...
5
COIL, ASSY, IGNITION, FH HUS-603003866
...
6
FLYWHEEL, ASSY, FH HUS-603003865
...
7
HARNESS, REGULATOR, FH HUS-603003864
...
8
COIL, CHARGING, FH HUS-603003863
...
9
BAND, HARNESS, FH HUS-603003862
...
10
WASHER, FLYWHEEL, FH HUS-603003861
...
11
BOLT, FLANGED, M6 X 20, KAW HUS-603003820
...
12
HARNESS, IGNITION, FH HUS-603003815
...
13
HARNESS, ENGINE, MAIN, FH HUS-603003814
...
14
SWITCH, OIL PRESSURE, FH HUS-603003813
...
15
CLAMP, HARNESS, LARGE, FH HUS-603003812
...
16
CLAMP, HARNESS, SMALL, FH HUS-603003811
...
17
SCREW, PAN, COIL MOUNT, FH HUS-603003810
...
18
STARTER, ELECTRIC, FH680D HUS-603003771
...
19
Spark Plug, BPR2ES HUS-603003770
