Husqvarna HUV 4421 GXP (2006-11) Utility Vehicle

Model: HUV 4421 GXP (2006-11)

Back To Assemblies

Save Part Not Listed?
product name

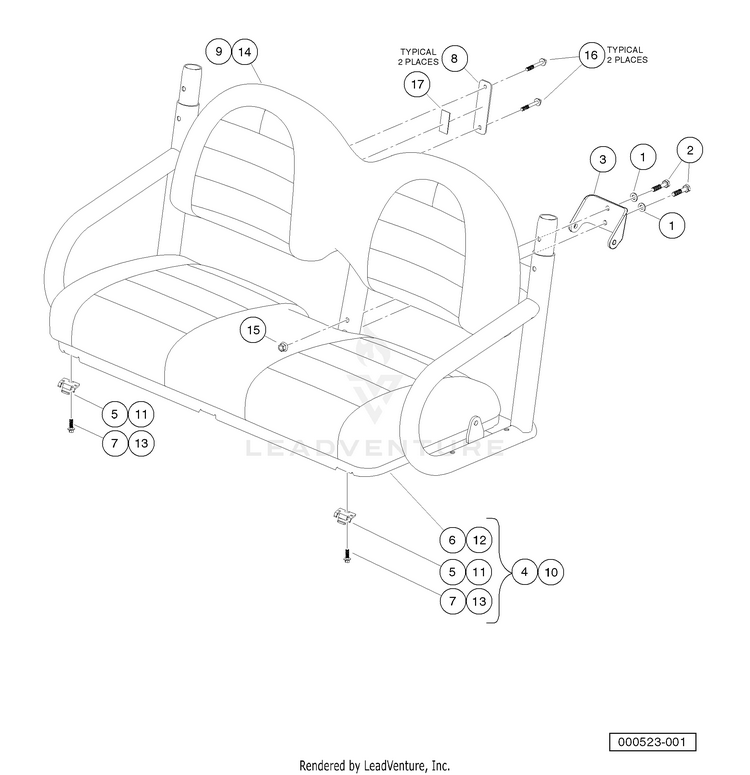

Bench Seats

...
...
1
WASHER, HARD, M10, ZN-NI/BLK HUS-603001673
...
2
BOLT, M10 X 45, ZN-NI/BLK (Black) HUS-603001760
...
3
BRACKET, SEAT BELT, BENCH HUS-531308118
...
4
KIT BENCH SEAT GRAY (includes items 5 through 7) HUS-574503301
...
5
HINGE PLATE HUS-603000125
...
7
BOLT FLG BLK, M8 X 25, LOCTITE HUS-603003457
...
8
BRACKET, SEAT BACK, AWD HUS-531308121
...
9
KIT BENCH SEAT GRAY HUS-574503301
...
10
KIT SEAT BENCH CONVERSION (includes items 11 through 13) HUS-574503701
...
11
HINGE PLATE HUS-603000125
...
12
Seat Bottom, Bench, Black HUS-603003456
...
13
BOLT FLG BLK, M8 X 25, LOCTITE HUS-603003457
...
14
SEAT BACK, BENCH, BLACK HUS-603003459
...
15
NUT, FLANGED, M10 X 1.5, BLACK HUS-603003475
...
16
BOLT, M8 X 55, FLANGED, BLACK HUS-531307417
