Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

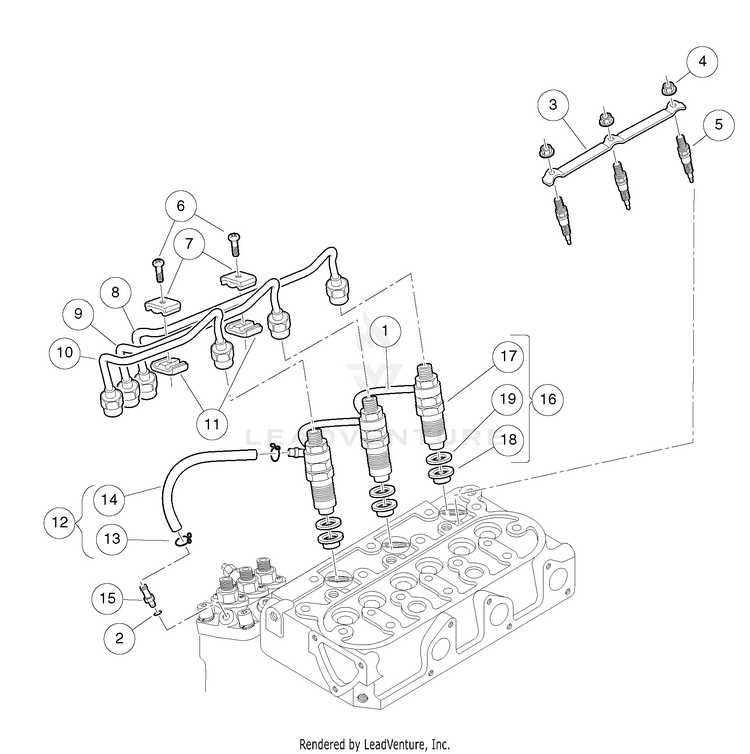

Nozzle HoldersAnd Glow Plugs

...
...
1
Assy Pipe, D722 Fuel Over Flow HUS-102605701
...
2
Gasket, 6 X 10 HUS-102635301
...
3
Cord, Glow Plug HUS-102642401
...
4
Nut, Flange,m4 HUS-102642501
...
5
Glow Plug HUS-102642601
...
6
Screw, Washer HUS-102642801
...
7
Clamp, Pipe, Top HUS-102642901
...
8
Pipe, Injection, Left HUS-102643001
...
9
Pipe, Injection, Right HUS-102643101
...
10
Pipe, Injection, Middle HUS-102643201
...
11
Clamp, Pipe, Bottom HUS-102643301
...
12
Assy Pipe, Over Flow (includes items 13 and 14) HUS-102643401
...
13
Clip, Pipe, Return HUS-102729601
...
15
Screw, Air Bleeder HUS-102643701
...
16
Kit, Holder, Nozzle (includes items 17 through 19) HUS-102729701
...
17
Assembly, Nozzle Holder HUS-102641501
...
18
Seal, Heat HUS-102642701
...
19
Gasket, Nozzle HUS-102643601
