Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

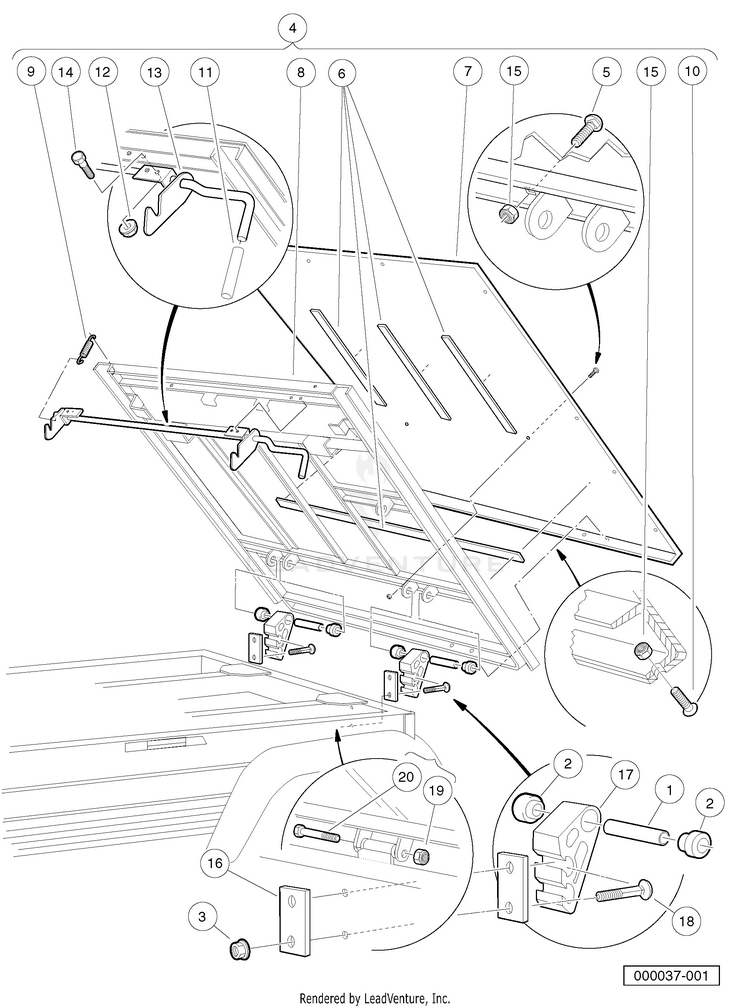

Tilt Bed, Hinge, and Latch

...
...
1
Bushing, Steel HUS-1012303
...
2
Bushing, Urethane HUS-1015583
...
3
Locknut, 3/8-16 Flanged Dimple HUS-102065901
...
4
Tilt Bed Assembly (includes items 5 through 15) HUS-102171503
...
5
Bolt, Carriage, 5/16-18 X 1.00 HUS-1010435
...
6
Tape, Vinyl Foam 1/8" x 3/4" Item not shown. HUS-1014471
...
9
Extension, Spring Latch HUS-1015391
...
10
Screw, 5/16-18 X 0.88 Torx Truss-Head HUS-1015399
...
11
Grip, Tilt Latch Hand HUS-1015400
...
12
Locknut, 1/4-20 Hex Whiz HUS-101835601
...
13
Ltch Weld Asm Tlt Bd HUS-102426901
...
14
Screw, 1/4-20 X 0.625 Hex-Head Cap HUS-403
...
15
Locknut, 5/16-18 Nylon Insert HUS-7473
...
16
Plate, Back HUS-102614101
...
17
Extr, Brkt, Hinge, Bed HUS-103538701
...
18
3/8-16 X 3.5 Carr Blt Gr5 Zn HUS-103538901
...
19
Locknut, 3/8-16 Hex HUS-8754
...
20
Screw, 3/8-16 X 3.375 Hex Cap HUS-8755
