Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

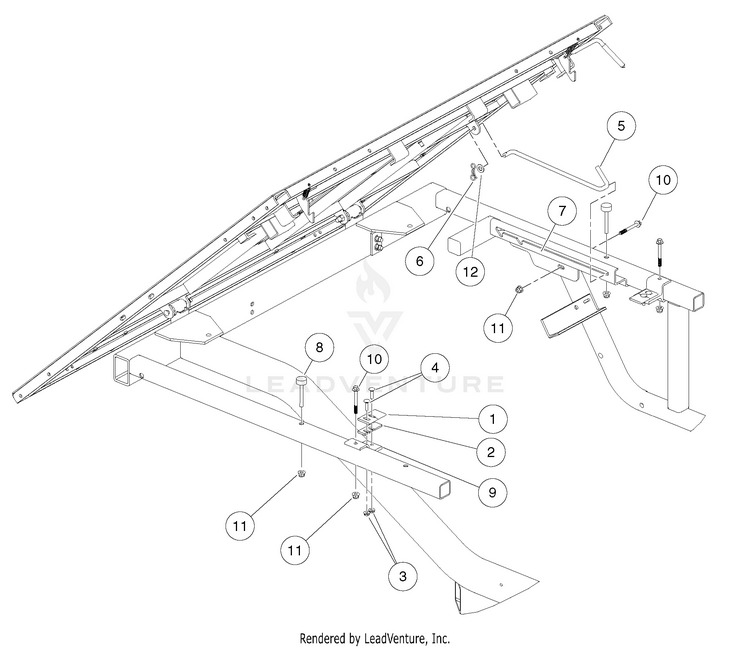

Latch Plate and Prop Rod

...
...
1
Latch Plate, Tilt Bed HUS-1015277
...
2
Latch Plate Shim HUS-1016078
...
3
Locknut, 1/4-20 Hex Whiz HUS-101835601
...
4
Bolt, Carriage, 1/4-20 X 1.0 HUS-101958602
...
5
Rod, Prop HUS-102301401
...
6
Pin, Bow Tie Locking HUS-102323101
...
7
Track, Prop Rod HUS-102418101
...
8
Bumper, Bed, Mtg, Front HUS-102426601
...
9
Bracket, Latch, Bed HUS-102493801
...
10
Bolt Flanged Head, M8 X 1.25 X 65 HUS-102618301
...
11
Lock Nut, Flg M8 X 1.25 Nylon HUS-102618601
...
12
Washer, 3/8 Type A Flat HUS-334
