Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

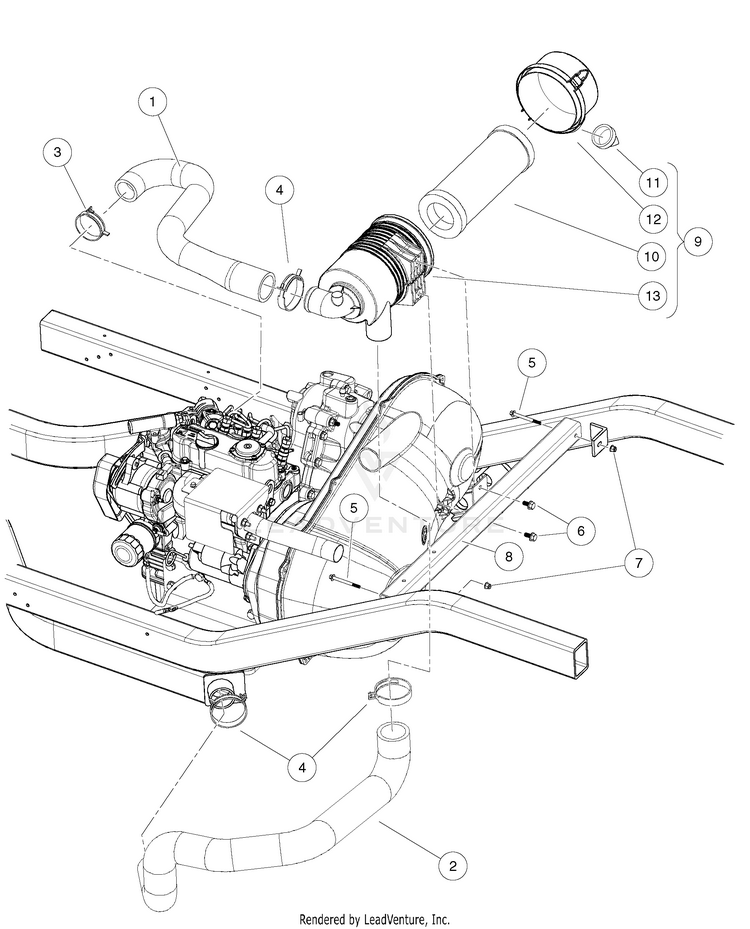

Intake Duct And Air Box Assembly - Diesel Vehicles

...
...
1
Hose, Intake, D722 HUS-102379001
...
2
Hose, Intake, Primary HUS-102395601
...
3
Clamp, Hose, Ctb 55mm HUS-102411209
...
4
Clamp, Hose, Ctb 64mm HUS-102411210
...
5
Bolt, M 6 X 1.0 X 65 Hex, Flange, Head, Black HUS-102541465
...
6
Bolt Flanged Head, M8 X1.25x 16 with Loctite HUS-102621201
...
7
Nut Flg, M6 X 1.0 Nylon HUS-102621501
...
9
Filter, Air, Canister, W/labe (includes items 10 through 13) HUS-102810701
...
10
Element, Filter, Air, 5 In HUS-102498601
...
11
Valve, Evacuator, Filter Air HUS-102725501
...
12
Cap, Latch Lock, Filter, Air HUS-102725601
Schematic Image Zoomed
