Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

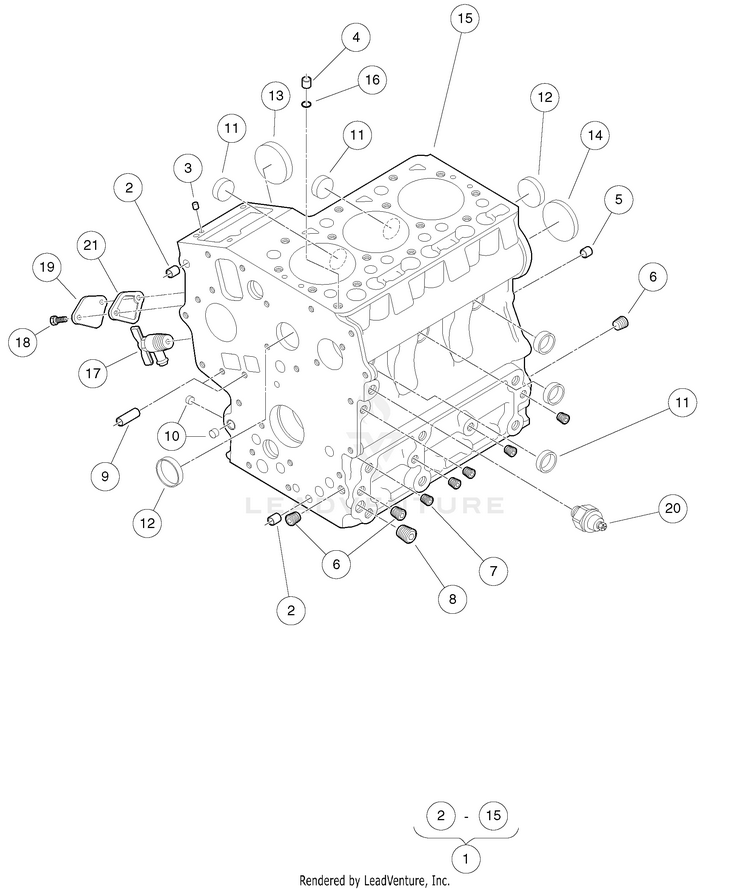

Crankcase

...
...
1
Engine Block (includes items 2 through 15) HUS-102600001
...
2
Pin, Pipe, Dia 8 X 14 HUS-102600101
...
3
Pin, Straight, Dia 5 X 10 HUS-102600201
...
4
Pin, Pipe, Dia 7 X 14 HUS-102600401
...
5
Pin, Straight, Dia 8 X 16 HUS-102600601
...
6
Plug, 1/8" HUS-102600701
...
7
Plug, 3/32" HUS-102600801
...
8
Plug, 1/4" HUS-102601001
...
9
Pin, Pipe, Dia 8 X 11 HUS-102601301
...
10
Cap, Sealing, Small HUS-102726201
...
11
Cap, Sealing, Med HUS-102726301
...
12
Cap, Sealing, Large HUS-102726401
...
13
Cover, Fuel Camshaft HUS-102726501
...
14
Plug, Expansion HUS-102726601
...
16
Ring, 8 X 7 HUS-102600301
...
17
Cock, Drain HUS-102601401
...
18
Bolt, M6 X 1 X 20 HUS-102631601
...
19
Plate, Engine Block HUS-102700801
...
20
Switch, Oil Pressure HUS-102730801
...
21
Gasket, Fuel Pump, D722 HUS-102732601
Schematic Image Zoomed
