product name

Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

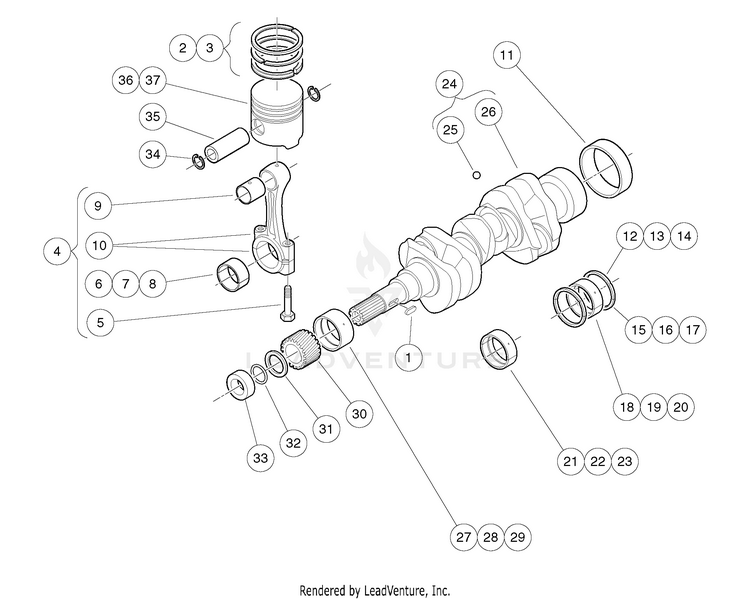

Piston And Crankshaft

...
...
1
Key, Feather, Short Camshaft HUS-102604401
...
2
Assy Piston Ring, D722 Std HUS-102607601
...
3
Assy Piston Ring, D722 +.025 HUS-102607602
...
4
Assy, Connecting Rod (includes items 5 through 10) HUS-102607801
...
5
Bolt, Connecting Rod HUS-102607901
...
6
Metal, Crank, Rod, D722, Std HUS-102630701
...
7
Metal, Crank, Rod, D722, .020 HUS-102630702
...
8
Metal, Crank, Rod, D722, .040 HUS-102630703
...
9
Bushing, Piston Pin, D722 HUS-102732201
...
11
Sleeve, Crankshaft HUS-102608101
...
12
Metal,crank, O Side, Std HUS-102608801
...
13
Metal,crank, O Side, +.020 HUS-102608802
...
14
Metal,crank, O Side, +.040 HUS-102608803
...
15
Metal,crank, I Side, Std HUS-102608804
...
16
Metal,crank, I Side, +.020 HUS-102608805
...
17
Metal,crank, I Side, +.040 HUS-102608806
...
18
Metal, Crank, Main, Rear Std HUS-102609001
...
19
Metal, Crank, Main, Rear -.020 HUS-102609002
...
20
Metal, Crank, Main, Rear -.040 HUS-102609003
...
21
Metal, Crank, Main, Mid Std HUS-102609801
...
22
Metal, Crank, Main, Mid +.020 HUS-102609802
...
23
Metal, Crank, Main, Mid +.040 HUS-102609803
...
24
Crankshaft (includes items 25 and 26) HUS-102610001
...
25
Ball, Crankshaft HUS-102608001
...
27
Metal, Crank, D722, Frnt, Std HUS-102630001
...
28
Metal, Crank, 722, Frnt, -.020 HUS-102630002
...
29
Metal, Crank, 722, Frnt, -.040 HUS-102630003
...
30
Gear, Crank HUS-102630101
...
31
Slinger, Oil HUS-102630201
...
32
O Ring, 23 X 26 HUS-102630301
...
33
Collar, Crankshaft HUS-102630401
...
34
Circlip, Piston Pin HUS-102630901
...
35
Pin, Piston HUS-102631001
...
36
Piston, D722, Std HUS-102728101
...
37
Piston, D722, +0.25 HUS-102728102
Schematic Image Zoomed
