Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

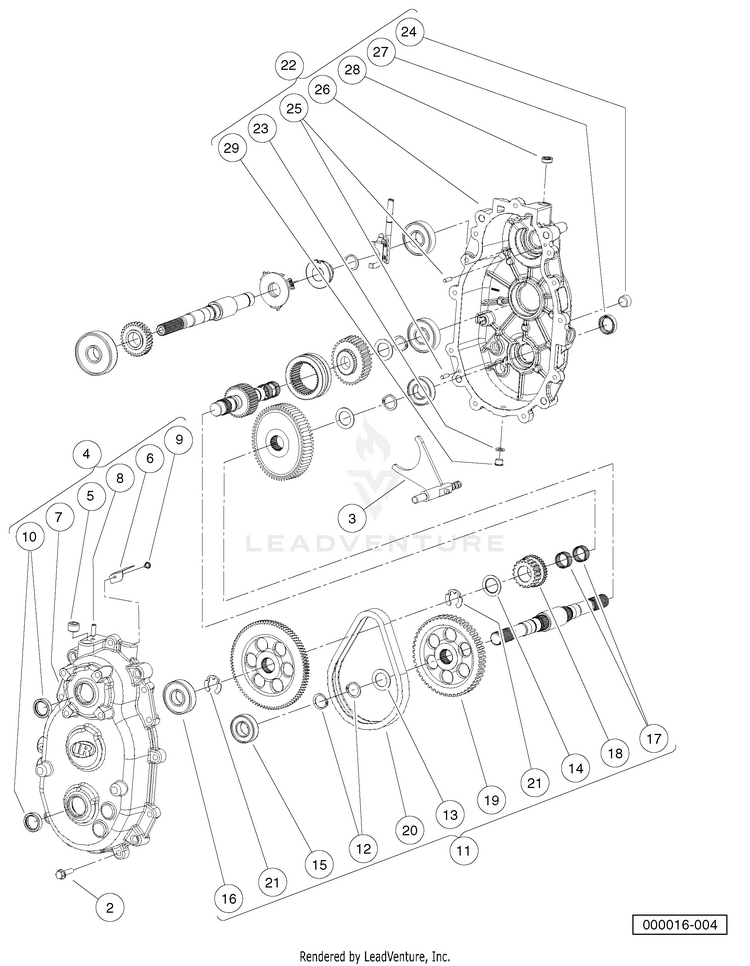

Tramsmission -Gasoline Vehicles

...
...
1
Transmission, Parallel Shaft (includes items 2 through 22) HUS-103178401
...
2
Screw,hex Flange, M8 X 35 HUS-102693301
...
3
Fork, Transmission HUS-102697801
...
4
Asm, Gear Case, Rear (includes items 5 through 10) HUS-102764201
...
5
Plug, Square Skt, 1/12-14, Ptf HUS-102694201
...
6
Oil, Deflector HUS-102696301
...
8
Vent, Trans HUS-102698301
...
9
Screw, Tapping # 10-24 X .375 HUS-102698901
...
10
Seal, Triple, 25 X 35 X 7.8 HUS-102699401
...
11
Kit, Reverse Gear Repair (includes items 12 through 21) HUS-102765201
...
12
Ring, Retaining, Basic External HUS-102696201
...
13
Washer, Thrust, 1.007 X .062 HUS-102696501
...
14
Washer, 26.231 X 39.167 X 1.57 HUS-102696701
...
15
Bearing, Ball HUS-102696801
...
16
Bearing, Ball HUS-102696901
...
17
Bearing, Needle HUS-102697101
...
21
Ring, Retaining, E-Ring HUS-102699701
...
22
Asm, Case, Gear, Front (includes items 23 through 29) HUS-103250301
...
23
Washer, .625 X .382 X .60 HUS-102693501
...
24
Plug, Square Skt, 1/12-14, Ptf HUS-102694201
...
25
Pin, Dowel, 6 X 20 HUS-102696101
...
27
Seal, Triple, 25 X 35 X 7.8 HUS-102699401
...
28
Seal, Dual-Lip HUS-102721501
...
29
Plug, 3/4-16 HUS-103250401
