Husqvarna HUV 4421 DXP (2009) Utility Vehicle

Model: HUV 4421 DXP (2009)

Back To Assemblies

Save Part Not Listed?
product name

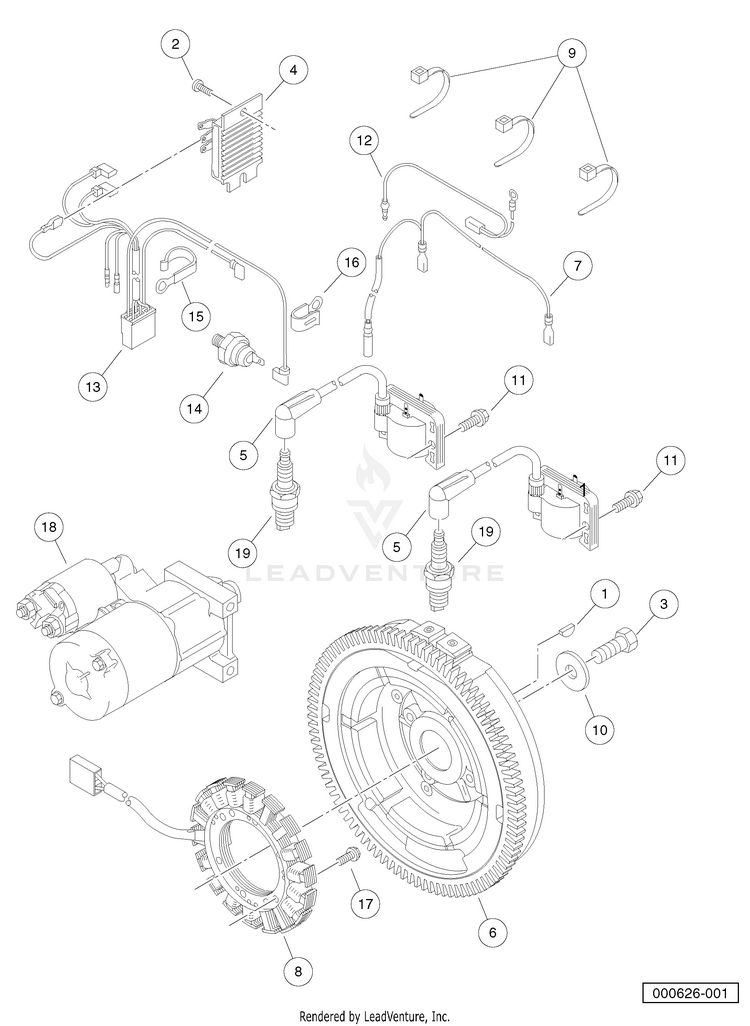

Ignition Components and Flywheel

...
...
1
Key HUS-1012871
...
2
Screw HUS-1016544
...
3
Bolt, Flg, M12 X 1.25 X 30 HUS-102994301
...
4
Regulator, Voltage, Fh HUS-103000401
...
5
Coil, Assy, Ignition, Fh HUS-103000501
...
6
Flywheel, Assy, Fh HUS-103000601
...
7
Harness, Regulator, Fh HUS-103000801
...
8
Coil, Charging, Fh HUS-103000901
...
9
Band, Harness, Fh HUS-103001301
...
10
Washer, Flywheel, Fh HUS-103001501
...
11
Bolt, Flanged, M6 X 20, Kaw HUS-103298501
...
12
Harness, Ignition, Fh HUS-103299501
...
13
Harness, Engine, Main, Fh HUS-103299601
...
14
Switch, Oil Pressure, Fh HUS-103299701
...
15
Clamp, Harness, Large, Fh HUS-103299801
...
16
Clamp, Harness, Small, Fh HUS-103299901
...
17
Screw, Pan, Coil Mount, Fh HUS-103300101
...
18
Starter, Electric, Fh680d HUS-103345501
...
19
Spark Plug, BPR2ES HUS-AM1232301
